Home > Data Logging Particulate Monitor sensor with the Series 500 Handheld
Aeroqual

Data Logging Particulate Monitor sensor with the Series 500 Handheld

1 In Stock
Product code: IC-PM-500

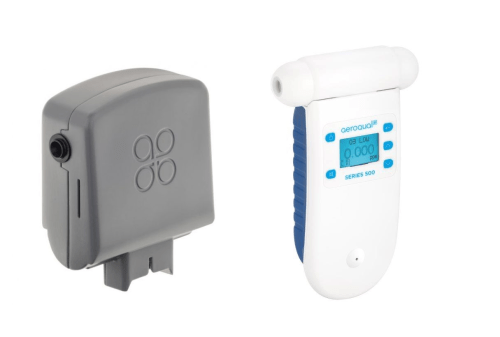

This kit comes supplied with the IC-PM and the IC-HH S500L handheld monitor. The IC-PM is Aeroqual's portable particulate monitor for accurate and simultaneous measurement of PM10 and PM2.5 in ambient outdoor and indoor environments. Whilst the Series 500 will allow you to view these results in real time, data log and if desired purchase additional sensor heads to monitor other gases.

Read more

$2,799.00 AUD + GST
 $3,078.90 AUD Inc. GST
$2,799.00 AUD + GST
 $3,078.90 AUD Inc. GST
Sale $3,129.09 AUD+ GST
 $3,442.00 AUD Inc. GST

This kit comes supplied with the IC-PM and the IC-HH S500L handheld monitor. The IC-PM is Aeroqual's portable particulate monitor for accurate and simultaneous measurement of PM10 and PM2.5 in ambient outdoor and indoor environments. Whilst the Series 200 will allow you to view these results in real time and if desired purchase additional sensor heads to monitor other gases.

Series 500 Lithium Air Quality Portable Monitor features and specifications:
Features:
- Simple to use, easy to maintain, multiple applications.
- Interchangeable gas sensor heads.
- Field replaceable long life Lithium battery (up to 8 hours).
- Minimum, maximum and average readings.

Specifications

- Measurement units: Gas: ppm or mg/m3 | Humidity: % | Temperature C or F
- Reading functions: Instant, minimum, maximum, average
- Sensor head: Interchangeable, replaceable
- Display status indicators: Battery, sensor, standby
- Sensor calibration: Zero and gain calibration
- Analog output: 0-5 V
- Digital Interface: RS-232 to USB
- Data logging: Up to 8,188 records (2706 incl. Temp/RH)
- PC data logging (Windows 7, 8, XP): Software and data cable supplied. Link data to a specific location and monitor.
- Clock function: Real time
- Power supply: 12V DC (power adaptor/charger supplied 100-250 V AC)
- Rechargeable battery: Lithium polymer 12 V DC 2700 mA/h
- Enclosure material and rating: PC and ABS; IP20 and NEMA 1 equivalent
- Size (with sensor head): (L x W x D) 195 x 122 x 54 (mm); 7 x 4 x 2 (in)
- Environmental operating conditions: Temperature: -5 C to 45 C/Humidity: 0 to 95 % non-condensing
- Temperature & Humidity sensor: Range - 40 C to 124 C (- 40 F to 255 F); Range 0 to 100 % RH
Particulate Matter Sensor features and specifications:
The IC-PM is Aeroqual's portable portable particulate monitor for accurate and simultaneous measurement of PM10 and PM2.5 in ambient outdoor and indoor environments. Compatible with Aeroqual's Series 200/300/500 air quality monitors, the portable particulate monitor will output particulate matter (PM) measurements for PM10 and PM2.5 in real-time.
- Range: 0.000 to 1.000 mg /m3
- Measurement Parameters: PM2.5 and PM10
- Sensor Type: Laser particle counter
- Minimum Detection Limit: 0.001 mg/m3
- Accuracy of Factory Calibration: +/- (0.002 mg/m3 + 15 % of reading)
- Resolution: 0.001 mg/3
- Response Time: 5 Seconds
- Temp: 0 to 40C
- Relative Humidity: 0 to 90% non-condensating
