DB9-DB9 Extension Cable (3M, CAN Bus)

ORDER ME IN
Product code: DB9-DB9-3M

Backorder Now, once ordered your item will dispatch before the 09th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

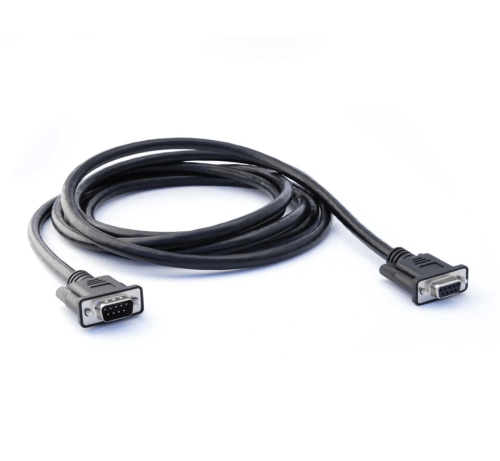

With this 3 meter low cost DB9 female to DB9 male connector cable, you'll be able to easily extend your CAN bus system or connect your CAN logger to a difficult-to-reach location.

The cables are non-terminated, letting you combine multiple together.

Read more

$89.60 AUD + GST
 $98.56 AUD Inc. GST
The 3 meter DB9 (male) to DB9 (female) CAN bus extension cable is great for connecting multiple CAN nodes in a system. In particular, you can use it to connect a CANedge/CLX000 to an existing CAN bus system in difficult-to-reach locations.
The cable is non-terminated, letting you combine multiple cables. The DB9 pinouts are according to CiA 303-1, meaning that the cable can be used with any of our CAN loggers and adapters - as well as most other CAN tools on the market.
Features:
- Rugged quality adapter cable with 22 AWG (0.5 mm2) thickness
- Cables are non-terminated and can be combined multiple times
- Easily access your CAN logger from difficult-to-reach applications
- DB9 screw locks ensure a solid connection
- Works with most CAN bus adapters (CiA 303-1 compatible)

Specifications

- Adapter Cable Length: 300 cm
- Adapter Pins: In accordance with CiA 303-1
- Compatibility: High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen
- Cable Thickness: 22 AWG (0.50 mm2)
- Connectors: 9-pin D-sub (DB9) male to female
- Temperature: Operating temperature: -20 to +80 C
- Weight: 360G
