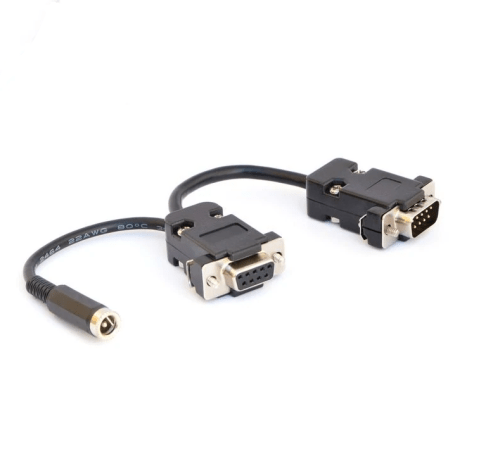

DB9 to DB9/DC Power Splitter

ORDER ME IN
Product code: DB9-DB9-DC

Backorder Now, once ordered your item will dispatch before the 09th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

With the DB9-to-DB9/DC power splitter, you'll be able to power e.g. your CAN logger via a power outlet, battery or e.g. cigarette receptacle. The DC female connector is a standard 5.5 mm (ID, inner diameter) x 2.1 mm (CPD, center pin diameter).

The adaptor is great for test setups, machine logging or vehicles where no power is provided by the DB9 connector (or you prefer not to use the CAN bus power supply).

Read more

$89.60 AUD + GST
 $98.56 AUD Inc. GST
The DB9-DB9/DC adapter lets you power your CANedge/CLX000 via an external power supply - e.g. if no power is available via the CAN connector.
The DC connector is 5.5 mm (ID) x 2.1 mm (CPD), meaning that it fits most standard power supply options.
Examples of potential power sources include:
- Battery packs (example)
- Vehicle cigarette outlet (example)
- Wall power outlet (example)
- Vehicle battery
Features:
- DC connector offers plug & play power source options
- Power your logger by your desk for e.g. ECU development
- Use your logger across multiple assets on-the-go via battery packs
- The DB9-DB/DC adapter is compact, light-weight and robust
- Works with most CAN adapters (CiA 303-1 compatible pinouts)

Specifications

- Adapter Cable Length: 15 cm (both cables)
- Adapter DC Connector: 5.5 mm (ID) x 2.1 mm (CPD)
- Adapter Pins: In accordance with CiA 303-1
- Compatibility: High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen
- Cable Thickness: 22 AWG (0.50 mm2)
- Connectors: 9-pin D-sub (DB9) male to female
- Temperature: Operating temperature: -20 to +80 C
- Weight: 30G
