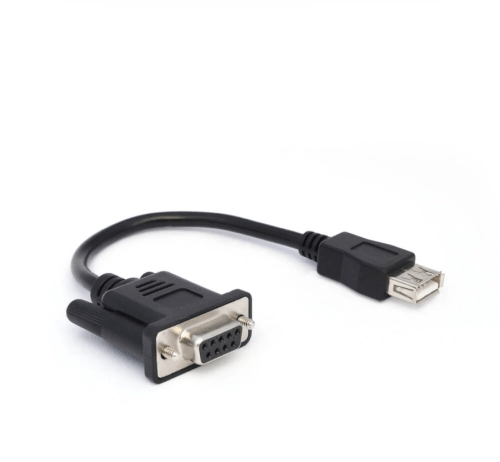

DB9-USB Power Adapter Cable

DISCONTINUED
Product code: DB9-USB

Unfortunately, the DB9-USB has been discontinued, check out our other  CAN Data Loggers Accessories for more options.

The CANedge2 lets you power a USB 3G/4G hotspot directly via the 2nd port (channel 2) using this DB9-USB adapter cable and upload your data via 3G/4G to your server.

Read more

The CANedge2 lets you power a USB 3G/4G hotspot directly via the 2nd port (channel 2) using this DB9-USB adapter cable
Further, the 5V power output from the CANedge2 can be turned on/off in the configuration (incl. via over-the-air updates).
The adapter lets you power a 3G/4G hotspot with the CANedge2 - with no need for a separate USB power supply.
The CANedge2 can be pre-configured with the name/password of the 3G/4G USB hotspot, enabling the device to push log files to your server via 3G/4G.
Features:
- Easy 3G/4G: Power a USB 3G/4G hotspot via the CANedge2 2nd port connector
- Combine: Combine with DB9-Y-splitter to also log data via the 2nd port
- OTA Control: Turn the 5V output on/off over-the-air - e.g. to toggle warning lamp
- Extend: Use DB9-extension cable to position 3G/4G hotspot for better signal
- Over molded: Overmold quality adapter cable with 22 AWG (0.5 mm2) thickness
- Solid Locks: DB9 screw locks ensure a solid connection

Specifications

- Power supply: The CANedge2 provides a configurable fixed 5V supply output
- Adapter Cable Length: 20 cm
- Cable Thickness: 22 AWG (0.50 mm2)
- Connectors: 9-pin D-sub (DB9) female to USB A female
- Temperature: Operating temperature: -20degC to +80degC
- Weight: 40G
