dBAir Safety Managers System with Octaves - Class 1

ORDER ME IN
Product code: IC-NK103

Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

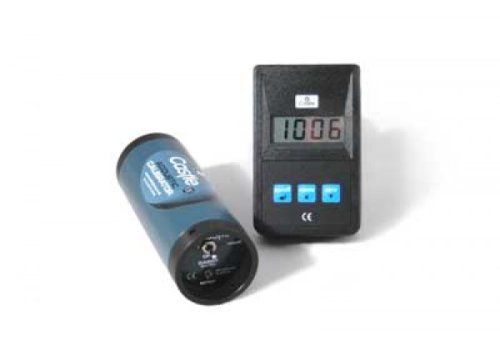

This is the ideal instrument for the professional safety manager looking to carry out occupational noise exposure assessments. With an easy to use interface, this dBAir Noise Assessment System is ready to use straight out of the box. Includes the GA141SO Class 1 dBAir Safety meter, a calibrator, carrying case, rubber instrument boot and a pro account for castle cloud.

Read more

$7,239.90 AUD + GST
 $7,963.89 AUD Inc. GST

This is the ideal instrument for the professional Safety Manager looking to carry out occupational noise exposure assessments. With an easy to use interface, this dBAir Noise Assessment System is ready to use straight out of the box. 1/1 Octave Band Analysis provides the user with the most accurate method of selecting hearing protection in combination with the integrated Hearing Protection Database. Octave bands are equally useful for the assessment of noise control measures. This is the ideal instrument for carrying out:

- Exposure Assessments
- Factory Noise Mapping
- Octave Band Hearing Protection Assessment
- Litigation Defence
- Noise Control Use the included cable to easily export all of your data to a CSV file ready for your analysis .

Specifications

- Applicable Standards: IEC 61672-1:2013 IEC 61260-1:2014 (Where Octave Bands Fitted) IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
- Measurement parameters: LSPL, LEQ, LMAX, LMIN, Peak, LEPd, Exposure Points, Dose, Hearing Protector Calculator. 1/1 Octaves
- Microphone: Class 1:Type 1 Pre-Polarised (50mV/Pa) Condenser Microphone -26 dB 2 dB re 1V/Pa Class 2:Type 2 Pre-Polarised (25mV/Pa) Condenser Microphone 32 dB 3 dB re 1V/Pa
- Measurement Ranges: Linear Operating Range: 95dB
- Noise Floor: Typical A WeightingFrequency WeightingsMeasurement 1: A, C or Z Measurement 2: A, C or Z
- Frequency Range: 1 Hz to 20 kHz (electrical characteristics) Class 1: 12.5 Hz - 20 kHz (including microphone) Class 2: 16Hz - 16kHz (including microphone)
- Time Weighting: Measurement 1: Slow, Fast, Impulse Measurement 2: Slow, Fast, Impulse
- Display: 2.4 Full Colour TFT 240x320 pixels
- Dual Measurements: Simultaneous dual measurement with independent time and frequency weightings
- Octave Band Analysis: Where fitted 1/1 or 1/3 octave band analysis on measurement 1 only.
