DC Gaussmeter with NIST Certified Boot - IC-1-HS
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,206.70 AUD Inc. GST

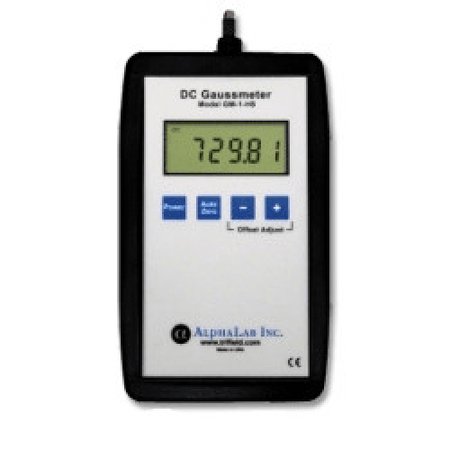

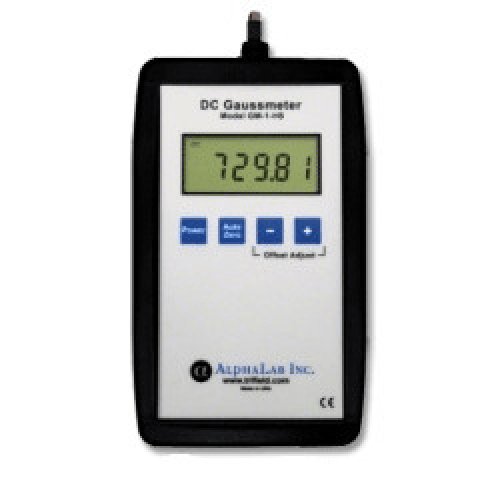

The Model GM1-HS measures the strength and polarity of magnetic fields up to 799.99 gauss. The thin sensor is at the end of a 100 cm flexible cable. The sensor tip is also flexible and can be bent for a variety of situations. The sensor can be held against the surface of a steel part to check for residual magnetism, or it can be bent into an L shape to measure inside a DC Solenoid. This meter has a resolution of 0.01 gauss (1/50 of the Earths typical field) which is finer resolution than the Model GM1-ST. It is also used to map fields from large magnets (If fields are over 800 gauss, use the Model GM1-ST). The meter has immediate turn-on and updates 4 times a second. There is no setup required, making this the fastest gauss meter available.
Features:
- High dynamic range and sensitivity: reads up to 799.99 gauss with 0.01 gauss resolution including polarity
- Instant on, updates four times a second, with no setup or initial calibration required
- Auto-Zero (subtracts the present field from subsequent readings); also a fine offset control
- Offset range is the full +/- 799.99 gauss
- 1% accuracy at room temperature
- Flexible probe and battery are included
- CE Compliant
- Certificate of NIST traceability included
- Detachable Rubber Boot Included
Applications:
- Makes detailed measurement of residual magnetism in metal parts.
- Use to map field near a magnet, such as the 5 gauss line around an MRI machine.
- Detect ambient field direction and strength, such as Earth Field
Specifications
- Range/Resolution: 799.99 G/0.01 G; with polarity indicator
- Accuracy: +/- 1% of reading (16 to 29 C); +/- 2% (-4 to 65 C)
- Offset: Auto Zero. Also fine offset (0.01 gauss resolution)
- Probe (non-detachable): 2.3 (thick) 4.8 x 24 mm on 100 cm cable
- Size: 5.2 x 3.6 x 1.6 inches; 132 x 91 x 41 mm
- Weight: 8 oz
- Battery: 9 volt alkaline (20 hour life)/Low Battery indicator
