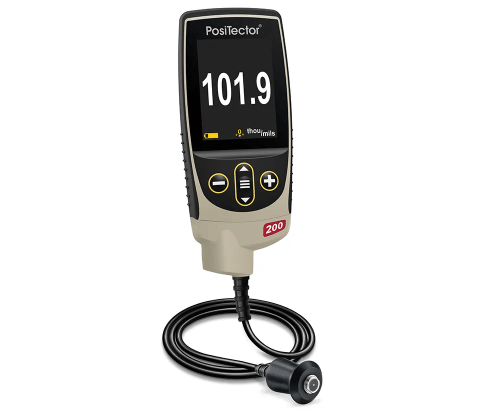

Defelsko PosiTector 200 D3 Advanced Coating Thickness Gauge
Backorder Now, once ordered your item will dispatch before the 26th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Defelsko PosiTector 200 D3 Advanced Coating Thickness Gauge measures the thickness of coatings over non metals including plastic, timber, composites and more. It has Bluetooth and WiFi connectivity and storage for 250,000 readings.
- Advanced PosiTector meters have Bluetooth and Wifi connectivity and can measure up to three layers with graphics.
- Non-destructively measures coating thickness over plastic, carbon fibre, timber and more using proven ultrasound technology.
- Includes 200C type probe for measuring coatings on carbon fibre, plastics, plasterboard and other non metals from 50 - 7600 um.
- Certificate of Calibration showing traceability to NIST or PTB included (Long Form).
Regular price
$5,612.12 AUD
+ GST
$6,173.34 AUD Inc. GST
$6,173.34 AUD Inc. GST
TheDefelsko PosiTector 200 D3 Advanced Coating Thickness Gauge measures the thickness of coatings over non metals including plastic, timber, composites and more.
Includes Advanced PosiTector gauge body and 200 D Ultrasonic cabled probe. 200D type probe for measuring thick, soft coatings such as Polyurea, Asphaltic Neoprene and more from 50 - 7600um
Standard model includes USB for data download, Storage for 250,000 readings and colour screen and Certificate of Calibration showing traceability to NIST or PTB included (Long Form).
Measures dry film thickness on non-metal surfaces such as plastic, carbon fibre, composites, timber. Can also measure the thickness of automotive paint over bumbers, plastic and composite panels. Can also be used to measure coatings on plasterboard / drywall and even printed circuit boards (PCBs).
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
200D3-G Features
- Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system.
- Graphics mode with screen capture for detailed analysis of the coating system
- Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
- Live graphing of measurement data
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Continually displays/updates average, standard deviation, min/max and number of readings while measuring
- Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range, ideal for ignoring unwanted surface echos
- Ready to measure: no adjustment required for most applications
- Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
- Up to 30% longer battery life
- On-gage help explains menu items at the touch of a button
- Weatherproof, dustproof, and water-resistant with IP65-rated enclosure
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Responsive transducers provide fast, accurate readings
- PosiSoft USB Drivestored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
- Certificate of Calibration showing traceability to NIST or PTB included
- Proven non-destructive technique conforms to ASTM D6132 and ISO 2808
- PosiTector body accepts all PosiTector 200, 6000, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage

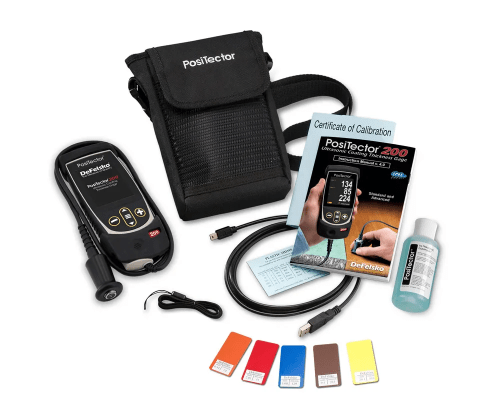

Standard package includes:
Includes meter, ultrasonic gel, precision plastic shims, protective rubber holster, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, and PosiSoft Software.
Specifications
|
Typical Applications
|
Thick, soft coatings such as polyurea, asphalitic neoprene, very thick polymers, etc.
|
|
Measurement Range
|
50 to 7,600 um / 2 to 300 mils
|
|
Coating Thickness
|
up to 7.8 mm
|
|
Accuracy
|
+/- (20 um + 3% of reading); +/- (1 mil + 3% of reading)
|
|
Minimum Layer Thickness
|
500 um / 20 mils
|
