Differential Digital Pressure Meter With 2 Pressure Ports- IC-475-0-FM

ORDER ME IN
Product code: IC-475-0-FM

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

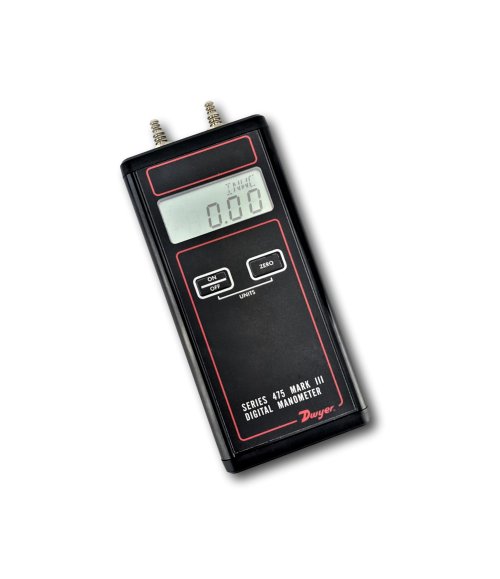

The SERIES 475 Mark III Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed.

Read more

$889.80 AUD + GST
 $978.78 AUD Inc. GST
The SERIES 475 Mark III Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed.
Features:
- Rugged aluminum case protects instrument from damage during transport/use
- Large, easy to read LCD and simple operation
- FM approved to be intrinsically safe in hazardous locations, Class 1, Div 2, Groups A, B, C, D, T4 Ta = 70 C
Applications:
- Monitoring natural gas pressures on boilers and other combustion equipment
- Air velocity monitoring, when used with a Dwyer Pitot tube (u) and AV calculator
- Field calibration of other instruments
- Monitoring or troubleshooting HVAC systems

Specifications

- Service: Air and compatible combustible gases.
- Metric range: 0 to 10.00 in w.c (up to 2.491 kPa)
- Wetted Materials: Consult factory
- Accuracy: +/- 0.5% FS, 15.6 to 25.6 C; 1.5% FS from 0 to 15.6 C and 25.6 to 40 C
- Pressure Hysteresis: +/- 0.1% FS
- Pressure Limits: 5 psig
- Temperature Limits: -17.8 to 60 C
- Compensated Temperature Limits: 0 to 40 C)
- Storage Temperature Limits: -20 to 80 C
- Display: 10.6 mm 4 digit LCD
- Power Requirements: 9 V alkaline battery, installed non-functional, user replaceable
- Weight: 306 g
- Process Connections: Two barbed connections for use with 3.18 mm or 4.76 mm ID tubing. Two compression fittings for use with 3.18 mm ID x 6.35 mm OD tubing for 475-7 & 475-8 only
- Agency Approvals: CE, FM approved to Class I, Div 2, Groups A, B, C, D, T4 Ta = 70 C
