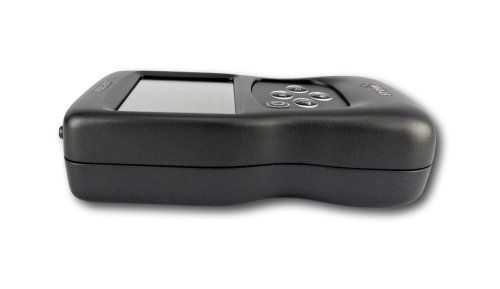

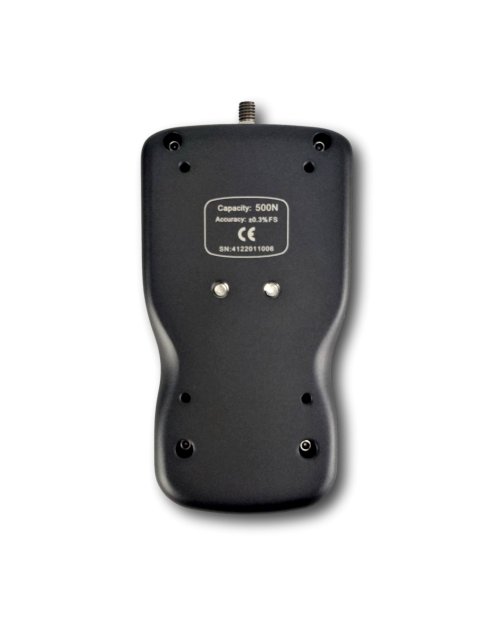

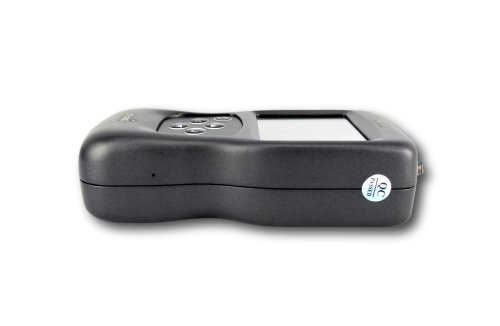

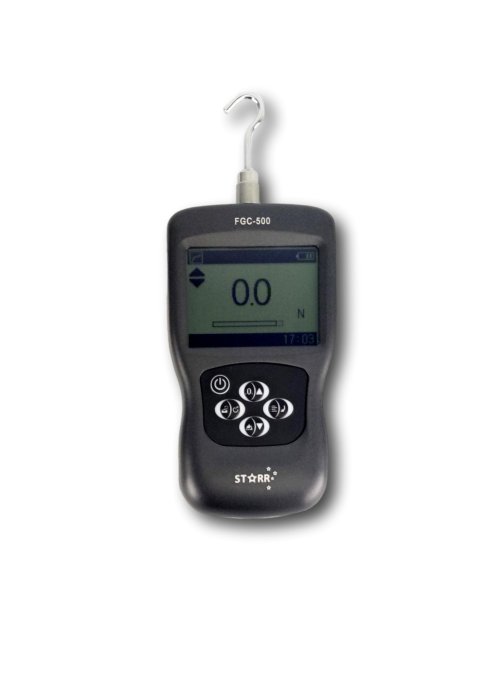

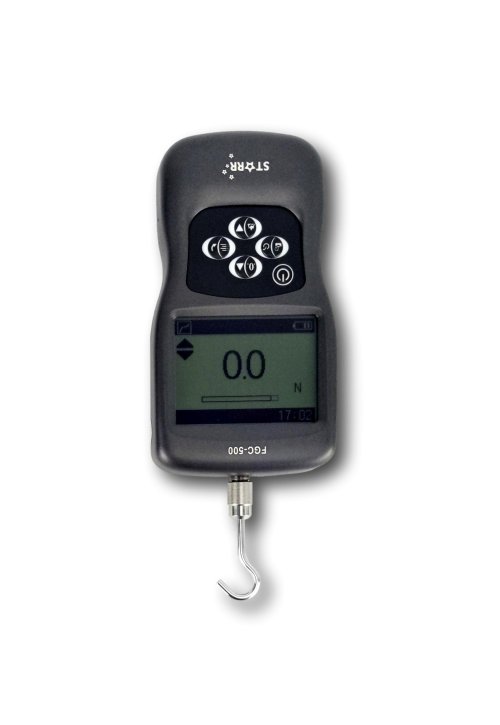

Digital Force Gauge - Basic 500N (50Kgf) - IC-FGC-500
$658.90 AUD Inc. GST
Starr Digital Force Gauge FGC-Series is designed for use in a wide range of industrial applications throughout Australian industry. specifically used for testing tension and compression forces.
This model is aimed at users wanting a simple and cost effective tension/compression testing solution. Built using the same quality materials and components, it features 3 different test modes for Peak, Tracking and Preset (which activates through a user-set value).
The FGC uses an integrated S-beam type load cell to measure the applied force in both push and pull directions. The user interface has keypad buttons for easy operation and is fitted with an overload protection system with an audible warning and visual bar graph alarm to reduce the chance of misuse and damage.
Use for manual handling testing and OH&S; to determine safe work load limits when pushing and or pulling materials handling equipment such as pallet trucks, lift trucks, trolleys, bins, fire doors etc. Other uses include state regulatory testing of window and door fixtures, latches, levers etc.
Features:
- Ergonomic metal body with touch sensitive keypad
- 500 reading data logger and EDMS software for output
- Auto-orientation display screen (switches when gauge is inverted)
- Visual and audible overload protection alarm
- Low/high alarm limit setting
Specifications
- Accuracy: +/- 0.3% F.S.
- Selectable Units: N, gf, kgf, ozf, and lbf. (Selectable)
- Display: LCD with LED Backlight
- Overload Capacity: 120% F.S.
- Measurement Mode: Track or Peak
- Sampling Rate: 500 Hz
- Memory: 500 records
- Power: Ni-MH rechargeable
- Charger/Adaptor: Universal USB charger
- Dimensions: 150 x 72 x 33mm
- Weight: 0.45 kg
