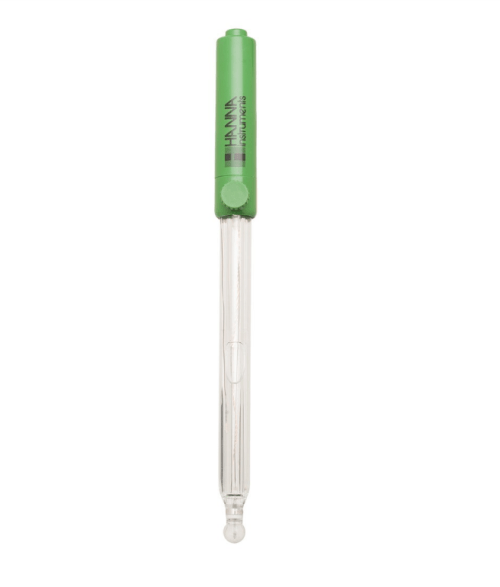

Digital Glass Body pH Electrode with Matching Pin for General Purpose - IC-HI11311
Backorder Now, once ordered your item will dispatch before the 02nd of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The HI11311 is a glass body, refillable, double junction pH electrode with a matching pin and a built-in temperature sensor for temperature compensated measurements in a single probe design. This probe connects to the meter with a 3.5 mm connector. The 3.5 mm connector is proprietary to meters that use digital electrodes
Regular price
$384.85 AUD
+ GST
$423.34 AUD Inc. GST
$423.34 AUD Inc. GST
The HI11311 is a glass body, refillable, double junction pH electrode with a matching pin and a built-in temperature sensor for temperature compensated measurements in a single probe design. This probe connects to the meter with a 3.5 mm connector. The 3.5 mm connector is proprietary to meters that use digital electrodes.
The matching pin integrated into the HI11311 is for the Sensor Check capability of the edge pH meter; this feature is used to identify problems with the
pH electrode such as cracks in the sensing glass or poor condition of the reference junction.
The HI11311 electrode features a built-in microchip that stores sensor type, serial number, and calibration information. It also features a single ceramic
junction and the spherical pH sensing portion is made with high temperature glass. This design consideration is ideal for general purpose laboratory
use.
Features:
- Matching Pin: The HI11311 integrates a matching pin into the electrode and is part of the Hanna Instruments Sensor Check feature. The matching
pin checks the impedance across the indicating and reference electrodes. This allows the edge meter to alert the user in the event that the glass of
the indicating pH electrode is cracked and the condition of the reference junction.
- Built-In Microchip: The built-in microchip stores sensor type, serial number and calibration information including date, time, offset, slope, probe condition
and buffers used. This information is automatically retrieved by edge once the electrode is plugged in. The ability to transfer information allows
for hot swapping of probes without having to recalibrate. ??All pH measurements are performed within the electrode and transferred digitally to the
meter. This overcomes any noise issues associated with the traditional high impedance analog measuring system. Electrical noise can be generated from
a built in temperature sensor and while working in a humid environment.
- Spherical Glass Tip: The spherical shaped tip design allows for a wide area of contact with the sample. This permits a faster electrode response with
a higher degree of stability. The HI11311 utilizes a high temperature (HT) glass formulation. A pH electrode with general purpose (GP) glass will have
a resistance of 100 megaohms at 25 C while the resistance of HT glass is around 400 megaohms at 25 C. As the HI11311 is used at elevated temperatures
the resistance decreases to approach the that of GP glass. The HI11311 is suitable to use with samples that measure from -5 to 100 C.
- Double Junction Reference: A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte
of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction
design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the
sample are undesirable or silver precipitates on the junction are likely to form.
- Glass Electrode Body: The glass electrode body is suitable for a wide range of applications due to its chemical resistance. The glass electrode is compatible
with many non-aqueous solvents and other aggressive chemicals. Glass is also resistant to many forms of radiation, such as ultraviolet radiation.
- Built-In Temperature Sensor: HI11311 features a built-in thermistor temperature sensor that is in the tip of the indicating pH electrode. A thermistor
temperature sensor provides for a high accuracy temperature reading and should be as close as possible to the indicating pH electrode in order to compensate
for the effect that temperature has on the membrane potential. By having an accurate reading it is possible to provide an accurate temperature compensated
reading.
Specifications
- Measurement Range pH: 0 to 13
- Reference Cell Type: Double
- Junction Type/Flow Rate: ceramic, single / 15-20 uL/h
- Refill Electrolyte: 3.5M KCl
- Body Material: Glass
- Tip/Shape: Spheric (dia: 9.5 mm)
- Matching Pin: Yes
- Max. Pressure: 0.1 bar
- Temperature Operating Range: -5 to 100 C (23 to 212 F)
- Body Length/Overall Length: 120 mm / 195 mm
- Temperature Sensor: Yes
- Outer Diameter: 12 mm
- Cable: 1 m (3.3')
- Connector Type: 3.5 mm connector
- Amplifier: No
- Recommended Use: Laboratory general purpose
