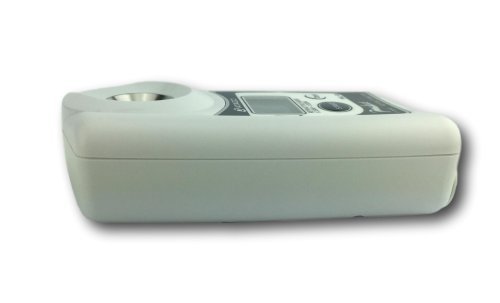

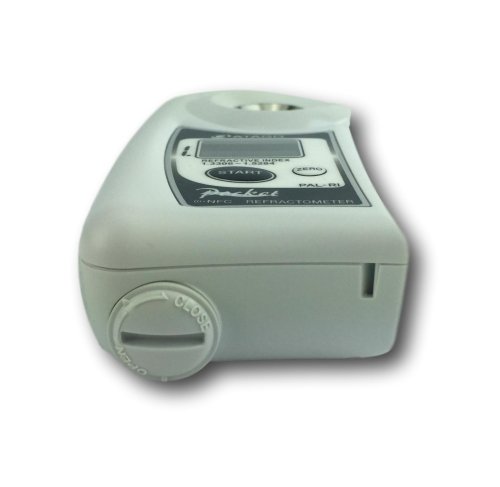

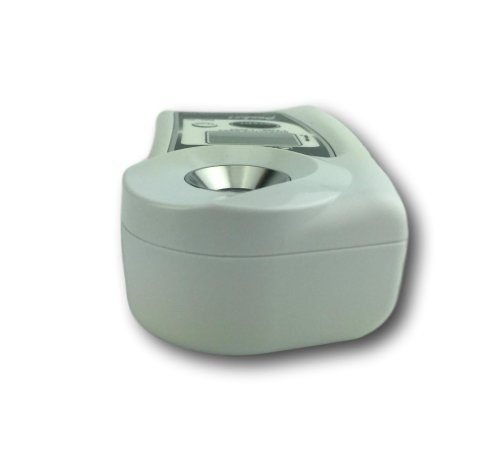

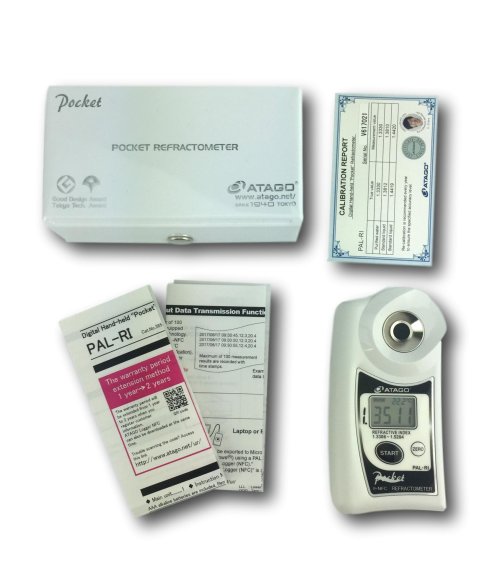

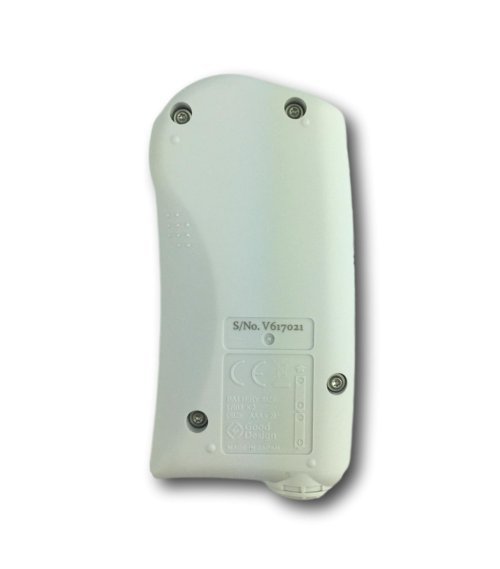

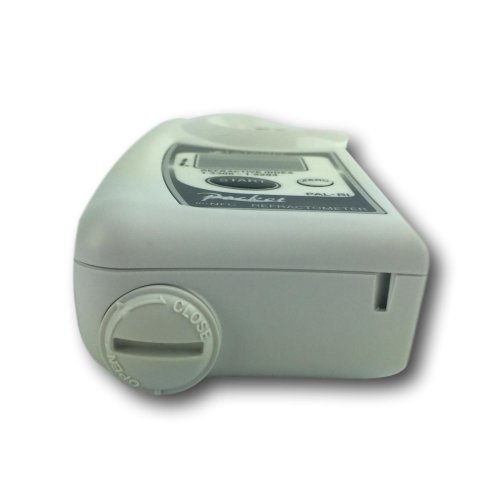

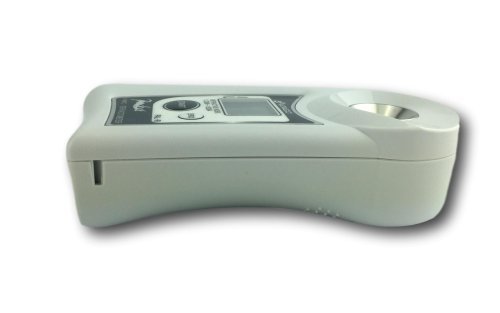

Digital Hand-held Pocket Refractometer - IC-PAL-RI
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The PAL-RI is just a straight-forward Refractive Index tester for determining the concentration of industrial fluids, cutting compounds, oil etc. The PAL-RI encompasses all of the same great features of the Atago "PAL" series. It has easy one-touch operation. Simply place some droplets of your sample on the prism and press the start key. The Refractive Index (R.I.) measurement (resolution 0.0001) and Temperature ??C is shown on the digital display screen within 3 seconds.
Regular price
$541.00 AUD
+ GST
$595.10 AUD Inc. GST
$595.10 AUD Inc. GST
The PAL-RI is just a straight-forward Refractive Index tester for determining the concentration of industrial fluids, cutting compounds, oil etc.
When the start key is pressed after placing some droplets of sample on the prism, the Refractive Index (resolution 0.0001) and temperature C of the measurementwill be displayed continuously like an electric newsboard. It is also equipped with all the features of the PAL series.
- Scale: Temperature and Refractive Index
- Measurement Range: Temperature : 10.0 to 100 C/Refractive Index: 1.3306 to 1.5284
- Resolution (Refractive Index): 0.0001
- Resolution (Temp): 0.1C
- Measurement Accuracy (refractive Index): +- 0.0003 (water at 20 C)
- Measurement Accuracy (Temp): +- 1 C
- Temperature compensation range: 10 to 100 C (Automatic Temperature Compensation)
- Measurement Temperature: 5 to 45 C
- Ambient Temperature: 10 to 40 C
- Sample Volume: 0.3ml
- Measurement Time: 3 seconds
- Battery Life: Approx. 11,000 times measurement (when alkaline batteries are used)
- International Protection Class: IP65 Dust-tight and Protected against water jets.
Specifications
- Scale: Temperature and Refractive Index
- Measurement Range: Temperature : 10.0 to 100 C/Refractive Index: 1.3306 to 1.5284
- Resolution (Refractive Index): 0.0001
- Resolution (Temp): 0.1C
- Measurement Accuracy (refractive Index): +- 0.0003 (water at 20 C)
- Measurement Accuracy (Temp): +- 1 C
- Temperature compensation range: 10 to 100 C (Automatic Temperature Compensation)
- Measurement Temperature: 5 to 45 C
- Ambient Temperature: 10 to 40 C
- Sample Volume: 0.3ml
- Measurement Time: 3 seconds
- Battery Life: Approx. 11,000 times measurement (when alkaline batteries are used)
- International Protection Class: IP65 Dust-tight and Protected against water jets.
