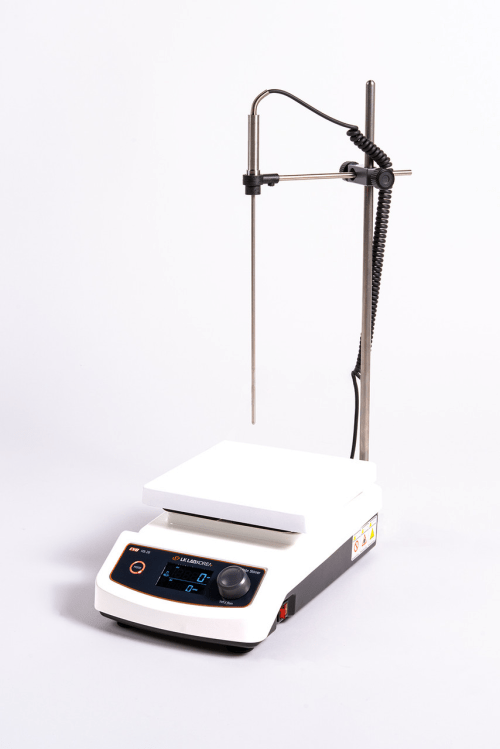

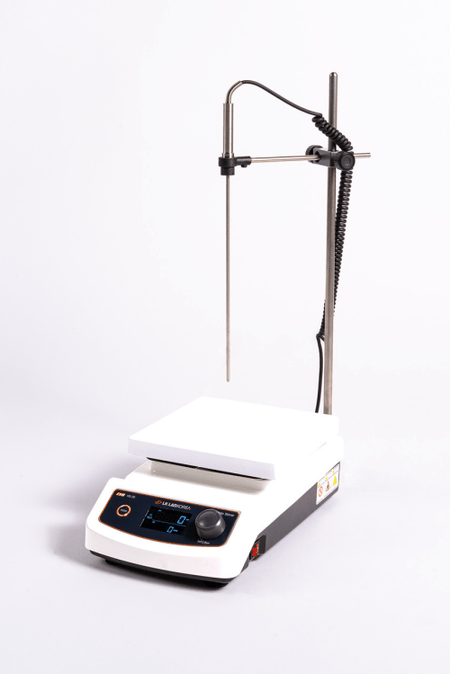

Digital Hotplate Stirrer with Sensor Control Set, 180x180mm Ceramic Plate, Max 380 C
Please call 1300 737 871 to check lead time and availability
The HS-20-SET is a digital hotplate sensor appropriate for general laboratory applications where heating and stirring is required.
-Built with two temperature sensors that measure liquid temperature and from the ceramic plate underneath for accurate measurements.
-With Backlight LCD.
-The hotplate is made from ceramic that is chemical resistant and easy to clean.
Regular price
$1,861.00 AUD
+ GST
$2,047.10 AUD Inc. GST
$2,047.10 AUD Inc. GST
The HS-20-SET is ideal for general lab applications where heating and stirring is required. All models feature a ceramic coated heating plate which provides effective heating across the entire plate surface.
An external sensor set is also be supplied with this model. The sensor set allows the controller to measure the liquid temperature inside a beaker or flask, rather than just the hotplate surface temperature. This sensor ultimately gives greater temperature control of sample temperature.
Features:
- Digital feedback provides accurate temperature and RPM control
- Jog dial switch with easy-to-set the RPM
- Backlight LCD with bright visibility and easy to monitor parameters
- Two independent sensors applied for temperature control and overheating prevention
- Motor with excellent durability and low-noise
- Actual sample temperature can be controlled by on external sensor
- Smooth magnetic stirring
Specifications
- Temp. Range: Max 380 C
- Temp. Display: LCD Display
- Temp. Accuracy: +/- 2 C
- Temp. Controller: Advanced Digital PID Controller
- Stirring Speed (RPM): 80 to 1500
- Stirring Capacity (Max litres): 15
- Timer: 99hr 59min
- Heating Power (W): 650
- Plate: Ceramic Coated Aluminum
- Body: Powder Coated Aluminum
- Plate Dimensions (mm): 180x180
- Dimensions (WxDxH mm): 180x310x110
- Weight (kg): 3
Includes:
- Main hotplate
- External sensor
- Sensor support Kit (Support Rod, holding Rod, and Rod Clamp)
