Digital pH,EC,DO Portable Meter with HI829113 pH Electrode - IC-HI98199
Backorder Now, once ordered your item will dispatch before the 21st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

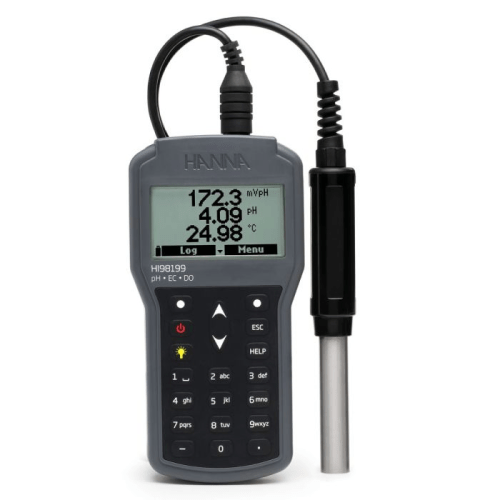

The HI98199 is a rugged, portable multiparameter meter with a single digital probe input that allows it to use either a pH, conductivity or dissolved oxygen probe.
- - Can measure up to 10 water quality parameters with 5 being measured by sensors and the other 5 by calculation (i.e. EC to TDS).
- - Complies to IP67 standards,
- - Supplied with a pH/temperature probe. Other compatible probes for dissolved oxygen, conductivity, are sold separately.
Regular price
$1,301.48 AUD
+ GST
$1,431.63 AUD Inc. GST
$1,431.63 AUD Inc. GST
The HI98199 is a rugged, portable multiparameter meter with a single digital probe input. The digital probe input allows the connection of either a pH, conductivity or dissolved oxygen probe.
Between the three probes and a built-in barometric pressure transducer the HI98199 can measure up to 10 water quality parameters with 5 being measured by sensors and the other 5 by calculation (i.e. EC to TDS).
This professional, waterproof meter complies to IP67 standards and is supplied with all necessary accessories to measure pH/temperature packaged into a durable carrying case.
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
HI98199 Features
- Superior Durability: An IP67-rated, waterproof meter means that this meter is built to withstand immersion in 1m of water for up to 30 minutes. The meter has rubber gaskets sealing the battery compartment and connectors in epoxy to prevent any water from entering and damaging the internal electronics from water. With an ergonomic design and waterproofing the HI98199 will fit well in your hand and provides years of use.
- Dot Matrix Display: The large dot matrix display provides for an intuitive user interface in which the user is guided through any setup configuration or calibration. A dedicated help key provides for contextual help that is related to the screen being viewed at the time. The dot matrix display is viewable under bright sunlight and has a backlight for when viewing under poor lighting conditions.
- Alphanumeric Keypad: The low profile vulcanized rubber keypad along with virtual keys provide for a quick entry of password, user ID and sample site. The configuration of the meter can be password protected to prevent any unwanted changes. The user and sample ID are stored with any logged readings and can be transferred to a PC for analysis or long term record keeping.
- Digital Probes: The HI98199 uses highly advance digital electrodes featuring a built-in microprocessor that performs the measurements. When these probes are connected to the meter they are automatically detected and the meter is updated to display the appropriate parameter. These digital electrodes also feature a quick connect DIN connector that provides a secure waterproof connection.
- Traceability: The calibration information for a connected probe can be viewed at anytime using the dedicated Good Laboratory Practice (GLP) button on the meter. The calibration information includes the date, time, calibration points and probe characteristic.
Standard package includes:
The HI98199 is supplied with the HI829113 pH digital probe with 4m (13) cable, pH calibration solution sachets, PC software, micro USB cable, batteries, quality certificate, and instruction manual in a rugged carrying case.
Specifications
|
pH Accuracy
|
+/- 0.02 pH
|
|
pH Calibration
|
automatic one, two, or three points of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer
|
|
pH Temperature Compensation
|
yes
|
|
mV Range
|
+/- 600.0 mV
|
|
mV Resolution
|
0.1 mV
|
|
mV Accuracy
|
+/- 0.5 mV
|
|
EC Range
|
0 to 200 mS/cm
|
|
EC Resolution
|
1 uS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm
|
|
EC Accuracy
|
+/- 1.5% of reading or +/- 2 uS/cm whichever is greater
|
|
EC Calibration
|
automatic single-point, with six standard solutions (84 S/cm, 1413 S/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point
|
|
TDS Range
|
0.0 to 200.0 ppt (g/L) (the maximum value depends on the TDS factor)
|
|
TDS Resolution
|
1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L)
|
|
TDS Accuracy
|
+/- 1% of reading or +/- 1 ppm (mg/L) whichever is greater
|
|
TDS Calibration
|
based on conductivity calibration
|
|
EC/TDS Temperature Compensation
|
yes
|
|
Temperature Correction Coefficient
|
0.00 to 6.00 %/C
|
|
EC to TDS Conversion Factor
|
0.00 to 1.00
|
|
Reference Temperature
|
25 C or 20 C
|
|
Cell Type
|
four ring
|
|
EC/TDS Multi-range Measurement Modes
|
yes
|
|
Salinity (PSU) Range
|
0.00 to 70.00 PSU
|
|
Salinity (PSU) Resolution
|
0.01 PSU
|
|
Salinity (PSU) Accuracy
|
+/- 2% of reading or +/- 0.01 PSU whichever is greater
|
|
Salinity (PSU) Calibration
|
based on conductivity calibration
|
|
Salinity (Seawater Sigma) Range
|
0.0 to 50.0 t, 0, 15
|
|
Salinity (Seawater Sigma) Resolution
|
0.1 t, 0, 15
|
|
Salinity (Seawater Sigma) Accuracy
|
+/- 1 t, 0, 15
|
|
Salinity (Seawater Sigma) Calibration
|
based on conductivity calibration
|
|
Resistivity Range
|
0 to 999999 cm; 0 to 1000.0 kcm; 0 to 1.0000 Mcm
|
|
Resistivity Resolution
|
1 cm; 0.1 kcm; 0.0001 Mcm
|
|
Resistivity Calibration
|
based on conductivity calibration
|
|
Dissolved Oxygen Measurement Type
|
galvanic
|
|
Dissolved Oxygen Range
|
0.0 to 500.0%; 0.00 to 50.00 ppm (mg/L)
|
|
Dissolved Oxygen Resolution
|
0.1%; 0.01 ppm (mg/L)
|
|
Dissolved Oxygen Accuracy
|
0.0 to 300.0%
|
|
Dissolved Oxygen Calibration
|
automatic one or two points at 0, 100% or one custom point
|
|
Dissolved Oxygen Temperature Compensation
|
yes
|
|
Barometric Pressure Compensation
|
yes
|
|
Salinity Compensation
|
yes
|
|
Temperature Range
|
-5.00 to 55.00 C; 23.00 to 131.00 Output!B1F; 268.15 to 328.15 K
|
|
Temperature Resolution
|
0.01 C; 0.01 F; 0.01 K
|
|
Temperature Accuracy
|
0.15 C; 0.27 F; 0.15 K
|
|
Temperature Calibration
|
automatic at one custom point
|
|
Temperature Compensation
|
automatic from -5 to 55 C (23 to 131 F)
|
|
Logging Type
|
continuous logging or log-on-demand
|
|
Logging Memory
|
45000 records
|
|
Logging Interval
|
one second to three hours
|
|
Connectivity
|
via USB-C with Hanna software
|
|
Automatic Shut-Off
|
Not used (disabled), 5, 10, 15, 20, 30, 60 minutes
|
|
GLP
|
yes
|
|
Calibration Timeout Reminder
|
yes
|
|
Display
|
dot matrix
|
|
Battery Type/Life
|
1.5V AA batteries (4) / approximately 400 hours of continuous use without backlight (50 hours with backlight)
|
|
IP Protection
|
IP67
|
|
Environment
|
0 to 50 C (32 to 122 F); RH 100%
|
|
Dimensions
|
185.0 x 93.0 x 35.2 mm (7.3 x 3.6 x 1.4)
|
|
Weight
|
400 g (14.2 oz.)
|
