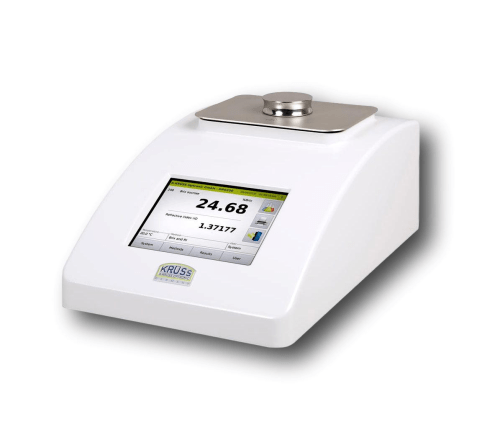

Digital Refractometer with Automation (nD 1.32000 to 1.58000, +/- 0.00002; 0 to 95 % Brix, +/- 0.02) - IC-DR6200-TF
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The DR6200-TF with flow-through cell enables fully automatic operation in combination with drying unit, peristaltic pump and autosampler. Made for low-viscous to slightly viscous samples, designed to fascilitate continuous measurements or series of measurements with high sample volumes. Measures nD (1,32000 to 1,58000) and Brix (0-95 %).
Regular price
$19,100.00 AUD
+ GST
$21,010.00 AUD Inc. GST
$21,010.00 AUD Inc. GST
Fast, reliable measurement:
- Measurement of low-viscous to slightly viscous samples
- Measurement with manual measurement time input or optimized measurement time thanks to automatic stability recognition
- Multiple measurements with averaging
- Statistical analysis
Unlimited number of methods:
- Measurement modes: single, continuous or interval measurement
- Method parameters such as scales, temperature, temperature compensation, sample supply, limit values, comments
- Alarm option for monitoring the limit values of standards and samples
- Pre-defined scales such as %Brix sucrose, %Brix invert sugar, %Brix glucose, %Brix fructose
- More than 100 additional scales available on request
Temperature control as required:
The built-in Peltier element makes it possible to control the temperature of samples within a range of 10 to 80 C in order to be decoupled from external temperature influences. The selected temperature has a very high accuracy of up to 0.01 C ensuring the comparability and reproducibility of the measurement results. An extremely homogeneous temperature control also rules out any measurement deviations due to temperature gradients. In addition, our temperature control offers short heating and cooling times; temperature changes between 20 C and 70 C are achieved in less four minutes.
Automation:

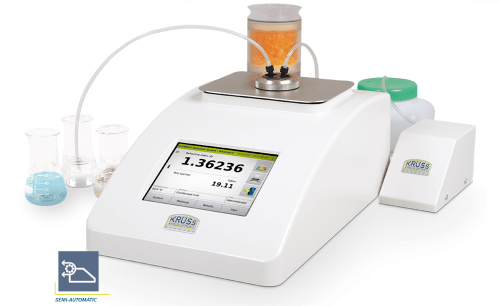

- All DR6000-TF models are capable of semi-automatic or fully automatic functions. The semi-automatic operation re-quires the DR6000-TF models with flow-through function, flow-through measuring cell, drying unit DS7060 and a peristaltic pump DS7070, which draws the sample or the cleaning agent into the measuring cell. Thanks to the 3/2-way valve of the drying unit, you do not need to interchange the tubes when switching from the sample supply or the cleaning to the drying.
- For full automation, The DR6000-TF models with through-flow function, flow-through measuring cell, drying unit DS7060, peristaltic pump DS7070 and auto-sampler AS80 or AS90 allow for a fully automated operation. The samples are taken from the vials of the autosampler and drawn into the measuring cell by the pump. If needed, the system can be automatically rinsed and dried after each measurement.
Complete data recording and backup:
- Records all measured data as well as system or method selections in a tamper-proof measured data storage
- Audit trail for logging configuration changes
- Data reports with own logo
Intuitive Operation:
- State-of-the-art touch-screen display
- Displays measured value in two measurement units
- Freely assignable speed buttons for the most important functions
- Easy to understand, menu-guided adjustment
- A choice of six languages (de, en, es, fr, it, pt)
Flexible Data Export:
- Print-out on serial ASCII printer (real paper)
- Print-out on network printer in PDF or PS format
- Print-out as PDF on USB flash drive or to network share
- Export in HTML or CSV format on USB flash drive or to network share
- Can be connected to a keyboard, mouse, barcode scanner or external PC in order to use the KrussLab
- Easy integration into existing networks (DHCP-Client) or a LIMS
Specifications
- Scales: Refractive index (nD), Concentration of sucrose, glucose, fructose and invert sugar [%Brix]
- Refractive index (nD) range and accuracy: 1.32000 to 1.58000 +/- 0.00002
- %Brix range and accuracy: 0 to 95 %Brix +/- 0.02%
- Refractive index (nD) resolution: 0.0001
- Brix resolution: 0.1
- Measurement period: approximately 4 seconds
- Measurement prism: sapphire
- Light source: LED
- Wavelength: 589 nm
- Temperature control: With integrated Peltier temperature control
- Temperature control range: 10 to 80 C
- Accuracy of temperature control: +/-0.1 C
- Temperature compensation: User activated
- Temperature measurement: With integrated Pt100 sensor
- Temperature measurement range: 10 to 80 C
- Temperature measurement accuracy: +/- 0.1 C
- Temperature measurement resolution: 0.1 C
Warranty:
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
