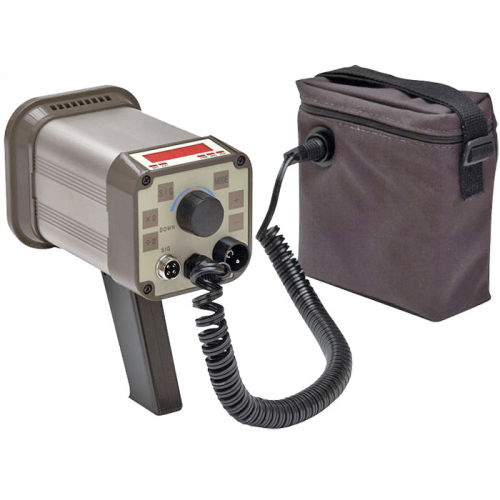

Digital Stroboscope with External Battery (230V ADAPTER) - IC-DT-315AEB-2
Unfortunately, the DT-315AEB-2 has been discontinued, check out our other Stroboscopes for more alternatives.
Portable, highly stable and accurate, industrial-quality tools for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the action. Powered by an external battery.
Unfortunately, the DT-315AEB-2 has been discontinued, check out our other
Stroboscopes for more alternatives.
Features:
- Highest accuracy and most stable flash rate
- Accepts external trigger input and provides synchronizing pulse output
- Easy-to-read LED display
- Phase shift for best view and flash photography
- Easy-to-operate controls
- Flash rate control
- Detachable pistol-grip handle
- Instant double and half-rate flash selection for error-free reading
- Provides 12 V DC power for external sensors
Specifications
- Flash Range: 40.0 - 35,000 FPM
- Accuracy (Internal mode): +/- 0.01% of reading
- Accuracy (External mode): +/- 0.01% or +/- 1 digit
- Resolution (0.1): 40.0 - 4,999.9
- Resolution (0.2): 5,000.0 - 7,999.8
- Resolution (0.5): 8,000.0 - 9,999.5
- Resolution (1.0): 10,000.0 - 12,500.0
- Drift: +/- 0.01% per C
- Update Time (Internal Mode): 0.2 seconds
- Update Time (External Mode): +/- 0.01% or +/- 1 digit
- Input Signal (LO level): 0-0.4 VDC
- Input Signal (HI level): 2.5 - 12 VDC or open collector (npn) pulse width 50us min
- Output Signal: Synchronous, 400 ?s pulse, 0 to approx. ? 12 V DC 1000 ohms impedance
- Display & Rate: Divide or multiply by 2, selectable
- Operating Temperature: 32-104 F (0-40 C)
- Display: 5 digits, 10 mm high, red LED
- Flash Tube: Xenon, 10 watt
- Flash Duration: 10 - 15 us
- Sensor Power Supply: 12 VDC +/- 0.5V (50ma)
- Power Requirements: External Rechargeable 12 V battery. Includes Battery Charger 230V AC
- Dimensions: 4.7 x 5.6 x 9.7" (120 x 141 x 248 mm)
- Operating Temperature: 0 to 40 C
- Weight: 4.4 lbs. (2 Kg)
Warranty:
- 2 Years Manufacturer Warranty +
Additional 1 Year Instrument Choice Warranty
