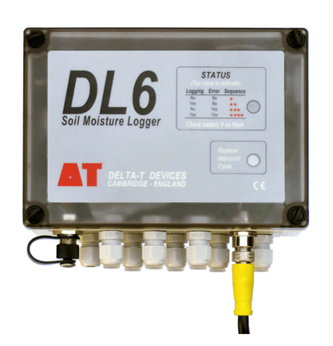

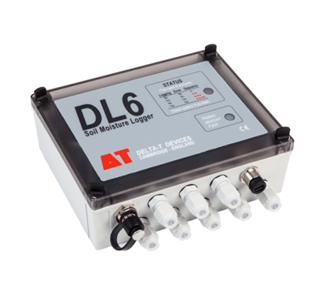

DL6 Data Logger - IC-DL6

The DL6 is a dedicated data logger optimised for use with Delta-T soil moisture sensors. It can be used with combinations of ThetaProbes, SM150T Soil Moisture Sensors and Profile Probes, and also accepts rain gauge and soil temperature probe inputs. Up to 16000 readings can be stored in memory.

The DL6 can record data from:

- 6 soil moisture sensors (or other analog voltages)
- 1 temperature sensor
- 1 pulse counter (e.g. rainfall)

DL6 - perfect partner for Profile Probes

The DL6 provides a cost-effective solution for logging Profile Probes. It handles a PR2/6 (100 cm depth) or a PR2/4 (40 cm depth). The IP68 cable makes connection easy, and the DL6 PC software simplifies sensor configuration and data collection.
Designed for field use

The DL6 is well suited to both research applications and irrigation monitoring. To minimise the need for opening the case, data is collected via an external RS232 socket, and the status of the logger can be checked using a vibration-activated LED. DL6 Loggers include a novel accelerated logging feature to allow the tracking of wetting fronts.

Storage, communications and power

The DL6 has a storage capacity of 16K readings (typical). Data can be collected by a laptop locally via RS232 or remotely using the cellular modem options. The DL6 has 6 alkaline AA internal batteries as standard. Up to 10 DL6s can share communications using an M8 cabling network.

Specifications:

- Input connections: 6 voltage channels, 1 temperature and 1 counter
- Control outputs: 1 relay (1 A)
- Readings stored: 16,000
- Recording rate: 1 second to 24 hours
- Configuration: DeltaLINK
- Communication options: RS232, USB [1] or modem
- Sensor excitation: 1 switched logger power
- Power: 6 AA alkaline batteries
- Battery life (dependent on usage): more than 230k readings, lasting at least 400 days
- Enclosure rating: IP67
- Temperature range: -10 to +50 C
- Size: 180 x 160 x 70 mm
- Typical application: Monitoring soil moisture profiles
