Temp & Depth (5M-1500M) Real Time, Online Data Transfer
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$4,278.78 AUD Inc. GST

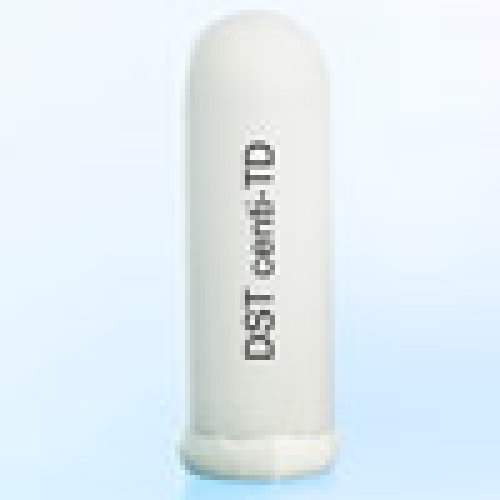

The DST centi-TD is a miniature underwater data logger with temperature and pressure (depth) sensors. Recorded data is stored in the loggers internal memory with a real-time clock reference for each measurement.
The DST centi-TD is supported by the SeaStar software and the Communication Box which serves as an interface between the logger and a PC. Communication between the logger and the Communication Box is wireless.
In SeaStar, the user sets the start time, start date and sampling interval before starting the recorder. Up to seven different intervals can be set for the same measurement sequence. This is especially useful when more frequent measurements are needed at a certain time period.
With default programming temperature and depth are recorded as pairs. Optionally, the two parameters can be set separately as primary and secondary parameters with different sampling frequency. That way memory partitioning can be customized according to individual preferences.
After recovering the DST recorded data is uploaded to SeaStar where results are displayed both in graphic and tabular form. After retrieving the data, the DST can be re-programmed and reused as long as the battery lasts.
A set of Communication Box and SeaStar software needs to be purchased with the first order.
Star-Oddi also offers protective logger housings for use at fixed locations or in harsh environments.
Examples of Applications:
DST centi-TD can be used as a stand-alone logger for recording depth and temperature in ocean and freshwater environments. The DST can be fastened to fishing gear, deployment lines, cables, moorings or other underwater equipment, collecting valuable data. The DST - TD is ideal for tagging fish and marine animals, externally or internally with implantation providing information on e.g. fish behavior and migration.
The DST centi is suitable for studies in e.g.:
Marine Animal tagging
Fisheries research
Oceanography
Marine biology
Ichthyology
Hydrology
Ecosystems research
Features:
Real-time data transfer for online access and monitoring
Dimensions (diameter x length): 15mm x 46mm
Sensors: Temperature and pressure (depth)
Standard temperature range: -2C to +40C
Temperature accuracy: +/-0.1C
Depth ranges: 5m-1500m
Depth accuracy: +/- 0.4% of selected range for 30m to 270m range, +/- 0.6% of selected range for 800m to 3000m range
Memory size: 174,000 in total measurements
Battery life: 7 years
Housing material: Alumina (implantable, biocompatible ceramic material)
Specifications
Sensors |
Temperature and pressure (depth) |
|---|---|
Size (diameter x length) |
15mm x 46mm |
Housing material |
Alumina (Ceramic) |
Weight (in air/in water) |
in air: 19g in water: 12g |
Memory type |
Non-volatile EEPROM |
Memory capacity |
174,000 measurements in total* |
Memory capacity bytes |
261,819 bytes / temperature 1.5 bytes, pressure 1.5 bytes |
Memory extension option |
786,099 bytes (EEPROM memory) |
Memory management |
- Custom programming - Primary and secondary parameter |
Data resolution |
12 bits |
Temperature resolution |
0.032C (0.058F) |
Temperature accuracy |
+/-0.1C (0.18F) |
Temperature range |
-2C to +40C (28F to 104F)** |
Temperature response time |
Time constant (63%) reached in 20 sec. |
Standard depth ranges |
5m-1500m |
Depth resolution |
0.03% of selected range |
Depth accuracy |
+/-0.4% of selected range for 30m to 270m range, +/- 0.6% of selected range for 800m to 3000m range |
Depth response time |
Immediate |
Data retention |
25 years |
Clock |
Real time clock Accuracy +/-1 min/month |
Sampling interval |
In second(s), minute(s) or hour(s) |
Number of different sampling intervals |
1 to 7 |
Communications |
Communication Box, Real-time online data transfer, RS-232C 9 pin serial and USB |
Attachment hole |
0.9 mm (in diameter) |
Corrosive resistance |
Oil, water, salt, antifreeze, brake fluid, diesel and gasoline |
Battery life |
7 years*** |
