Data Storage Tag Milli Temperature And Depth (10Cm-50M)

ORDER ME IN
Product code: DST-milli-TD-10-50

Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

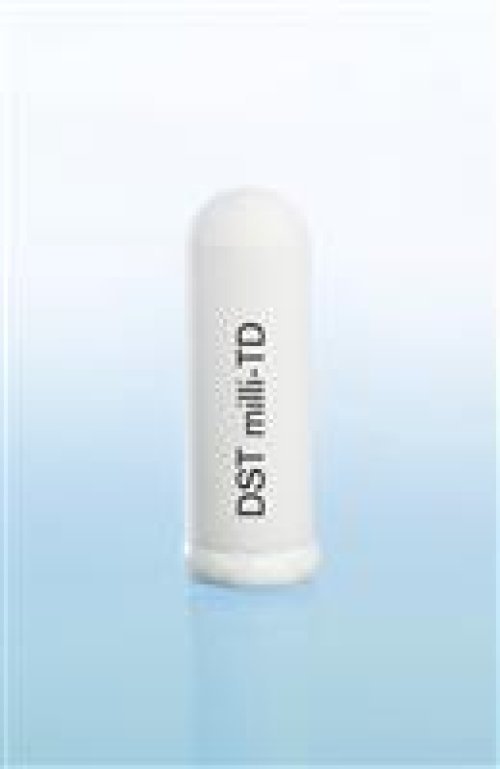

The DST milli-TD is a miniature submersible data logger that measures and records temperature and pressure (depth).

Read more

$1,169.90 AUD + GST
 $1,286.89 AUD Inc. GST
Overview
Dimensions (diameter x length): 12.5mm x 38.4mm
Sensors: Temperature, pressure (depth)
Standard temperature range: -1C to +40C
Temperature accuracy: +/-0.1C
Depth ranges: 10cm to 50m
Depth accuracy: +/-0.4% of selected range for 20m to 500m range, +/-0.6% for 800m range
Memory size: 43,000 measurements in total
Battery life: 3 years
Housing material: Alumina (implantable, biocompatible ceramic material)
Description
The DST milli-TD is a miniature submersible data logger that measures and records temperature and pressure (depth). Recorded data is stored in the loggers internal memory with a real time reference for each measurement.
The DST milli-TD is supported by SeaStar and Mercury softwares and the Communication Box which serves as an interface between the logger and a PC. Communication between the logger and the Communication Box is wireless.
In the software, the user sets the start time, start date and sampling interval before starting the recorder. Up to seven different intervals can be set for the same measurement sequence. This is especially useful when more frequent measurements are needed at a certain time period.
With default programming temperature and pressure are recorded as pairs. Optionally, they can be set as primary and secondary parameters with different sampling frequency. That way memory partitioning can be customized according to individual preferences.
After recovering the DST recorded data is uploaded in the supporting software where results are displayed both in graphic and tabular form. After retrieving the data, the DST can be re-programmed and reused as long as the battery lasts.
A set of Communication Box and SeaStar or Mercury software needs to be purchased with the first order.
Star-Oddi offers protective logger housings for use as a stand-alone logger at fixed locations or harsh environments.
Examples of ApplicationDST milli-TD is designed as an archival tag for for fish and marine animal tagging, providing information on the animals behavior. The DST milli-TD is widely used as a stand-alone logger for sampling underwater and on land. The DST can be fastened to fishing gear or other underwater equipment, collecting valuable data.
The DST milli-TD is suitable for use within e.g.:
  • Fish and marine animal tagging (internally or externally)
  • Fishing gear studies
  • Oceanography
  • Marine biology
  • Agricultural and cattle research projects
  • Hydrology
  • Ecosystems research
  • Temperature and pressure measurement in liquids, vials etc.
  • Pharmaceutical research studies
  • Any other field where temperature and pressure recording is required
Technical Specifications

Sensors 		Temperature and pressure (depth)

Size (diameter x length)

13mm x 38.4mm

Housing material

Alumina (Ceramic)

Weight (in air/in water)

in air: 9.2g in water: 5g

Memory type

Non-volatile EEPROM Optional FLASH memory (milli-F)

Memory capacity bytes

65,375 bytes / temperature 1.5 bytes, pressure 1.5 bytes

Memory extension option

1,048,064 bytes (FLASH memory)

Memory management

- Custom programming - Primary and secondary parameter

Data resolution

12 bits

Temperature resolution

0.032C (0.058F)

Temperature accuracy

All types: +/-0.1C (0.18F)

Temperature range

-1C to +40C (30F to 104F)***

Temperature response time

Time constant (63%) reached in 12 sec.

Standard depth ranges

10cm-50m

Depth resolution

0.03% of selected range

Depth accuracy

+/-0.4% of selected range for 20m to 500m range, +/-0.6% of selected range for 600m range

Depth response time

Immediate

Data retention

25 years

Clock

Real time clock Accuracy +/-1 min/month

Sampling interval

In second(s), minute(s) or hour(s)

Number of different sampling intervals

1 to 7

Communications

Communication Box, RS-232C 9 pin serial and USB

Attachment hole

0.9 mm (in diameter)

Battery life

3 years* * For sampling interval of 10 minutes; temperature and pressure recorded simultaneously. ** Total memory is divided between the two sensors. *** Outside ranges available upon request Specifications may change without notice.
