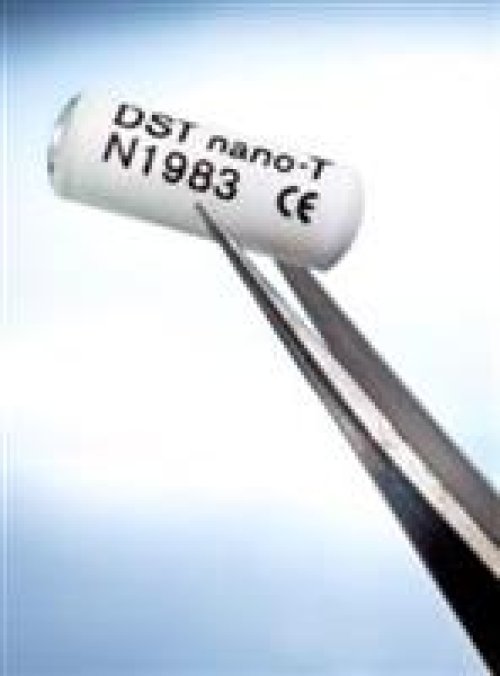

DST nano-T -World's smallest thermo logger
Backorder Now, once ordered your item will dispatch before the 27th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,039.50 AUD Inc. GST
World's smallest thermo logger!
Overview
Dimensions (diameter x length): 6mm x 17mm
Weight: 1 g
Sensor: Temperature
Standard temperature range: 0 to +45C
Temperature accuracy: +/-0.2 C
Memory size: 5,248 measurements
Battery life: 9 months
Housing material: Implantable alumina and biocompatible epoxy
Description
The DST nano-T is the world's smallest temperature data logger. Recorded data is stored in the loggers internal memory with a real time clock reference for each measurement.
The DST nano-T is supported by the Mercury (and SeaStar) software and the Communication Box which serves as an interface between the logger and a PC. Communication between the logger and the Communication Box is wireless.
In the software, the user sets the start time, start date and sampling interval before starting the recorder. Up to seven different intervals can be set for the same measurement sequence. This is especially useful when more frequent measurements are needed at a certain time period.
After recovering the DST, recorded data is uploaded in the supporting software where results are displayed both in graphic and tabular form. After retrieving the data, the DST can be re-programmed and reused as long as the battery lasts.
A set of Communication Box and SeaStar software needs to be purchased with the first order.
Examples of Application
DST nano-T was designed to be used as an implantable thermo logger for wild and captive animals. DST nano-T is made of biocompatible materials (alumina and biocompatible epoxy) and its size and shape are ideal for implantation in small animals. The logger can also be fitted in tight spaces, small packages or vials, for e.g. heat studies or temperature monitoring. With its waterproof housing and carefully chosen materials the DST nano-T can be used for collecting temperature data underwater or in other liquids (tolerates chemicals well).
The DST nano-T temperature logger is suitable for studies within e.g.:
- Laboratory animal science
- Preclinical research, stability and toxicology studies
- Quality control (e.g. packaging)
- Tagging of small fish and animals
- Any use where ultra small and lightweight temperature recorder is required
Technical Specifications
Sensors |
Temperature |
|---|---|
Size (diameter x length) |
6 mm x 17 mm |
Housing material |
Alumina and biocompatible epoxy |
Weight (in air/in water) |
1 g |
Memory type |
Non-volatile EEPROM |
Memory capacity |
5,248 measurements / 7872 bytes |
Memory capacity bytes |
7,872 bytes / temp 1.5 byte |
Memory management |
Custom programming |
Data resolution |
12 bits |
Temperature resolution |
0.032C (0.058F) |
Temperature accuracy |
+/-0.2C |
Temperature range |
0 to 45C (32F to 113F)** |
Temperature response time |
Time constant (63%) reached <10 sec. |
Data retention |
10 years |
Clock |
Real time clock, accuracy +/-1 min/month |
Sampling interval |
User specified in second(s), minute(s) or hour(s) |
Number of different sampling intervals |
1 to 7 |
Communications |
Communication box, RS232C 9 pin serial or USB |
Battery life |
9 months* |
