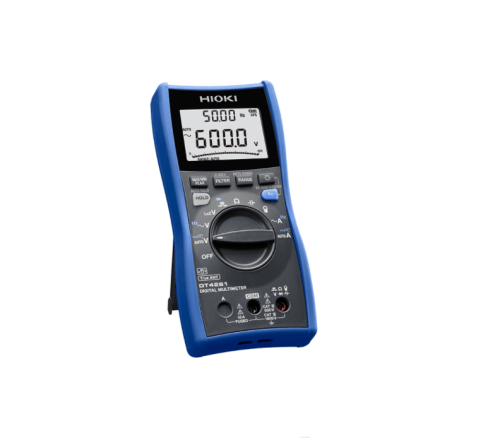

DT4261 Digital Multimeter
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The DT4261, is an exceptional support tool with multifaceted functionality designed to help analyze a variety of issues and boost work efficiency.
-Enables high voltage measurement up to CAT III 2000 V.
-Safely measure solar installations by using the DT4261 with compatible Hioki clamp meters and digital multimeters (DMMs).
-With IP54 protection.
Regular price
$629.10 AUD
+ GST
$692.01 AUD Inc. GST
$692.01 AUD Inc. GST
The DT4261, is an exceptional support tool with multifaceted functionality designed to help analyze a variety of issues and boost work efficiency.
Features:
- Enables high voltage measurement up to CAT III 2000 V
- Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)
- Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel.
- Prevents incorrect measurement: When switching from the clamp function to the current function, a fuse disconnection check is automatically performed. This allows the user to know if the fuse is broken before current measurement, which prevents erroneous measurement.
- Due to the current terminals low impedance, measuring voltage after erroneously inserting a test lead into the current terminal will cause the fuse to blow. The DT4261s terminal shutters are linked to the instruments rotary switch such that they block access to test lead terminals that arent being used, making it physically impossible to insert a lead into the wrong terminal.
- Ability to withstand being dropped onto concrete from a height of 1 m (drop-proof design)
- Broad operating temperature range of -25 to 65 C
- Automatic detection of DC and AC voltages (AUTO V function)
- Visual warning of excessive input via red backlight
- Visual indication of HOLD operation via orange light
Specifications
- DC Voltage range: 60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: +/- 0.025 % rdg. +/- 2 dgt.
- AC Voltage* range: 60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz - 100 kHz, Basic accuracy 45 to 65 Hz : +/- 0.2 % rdg. +/- 25 dgt. (True RMS, crest factor 3)
- DC plus AC Voltage* range: 6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics: 20 Hz to 100 kHz, Basic accuracy 45 to 65 Hz : +/- 0.3 % rdg. +/- 30 dgt. (True RMS, crest factor 3)
- LoZ V: 600.0 V, 1 range, Frequency characteristics: DC, 40 Hz to 1 kHz. Basic accuracy DC, 40 Hz - 500 Hz: +/- 1.0% rdg. +/- 13 dgt. (True RMS, crest factor 3 or less)
- Resistance range: 60.000 ohms to 600.0 milliohm, 8 ranges, Basic accuracy: +/- 0.03 % rdg. +/- 2 dgt.
- DC Current range: 600.00 uA to 600.00 mA, 4 ranges, Basic accuracy: +/- 0.05 % rdg. +/- 5 dgt.
- AC Current* range: 600.00 uA to 600.00 mA, 4 ranges, Basic accuracy 45 to 65 Hz : +/- 0.6 % rdg. +/- 5 dgt. (True RMS, crest factor 3). Frequency characteristics: 20 Hz to 20 kHz (at 600 uA to 600 mA range)
- AC Current* range (use with Clamp on probes): 10.00 A to 1000 A, 7 ranges. Add the Clamp on probe accuracy to Basic accuracy 40 to 65 Hz : +/- 0.6 % rdg. +/- 2 dgt. (True RMS, crest factor 3)
- Capacitance: 1.000 uF to 10.00 mF, 5 ranges, Basic accuracy: +/- 1.9% rdg. +/- 5 dgt.
- Continuity Check: Continuity threshold ON : 25 ohms, Continuity threshold OFF : 245 ohms, Response time: 0.5 ms or more
- Diode test: Open terminal voltage: Open terminal voltage: 2.0 V or less, Testing current: 0.2 mA or less, Threshold of forward voltage: 0.15 V to 1.8 V
- Voltage frequency range: 99.99 Hz to 99.99 kHz, 4 ranges (Limited by minimum sensitivity voltage). Basic accuracy: +/- 0.1% rdg. +/- 1 dgt.
- Current frequency range: 99.99 Hz to 9.999 kHz, 3 ranges (Limited by minimum sensitivity current). Basic accuracy: +/- 0.1% rdg. +/- 1 dgt.
- Other functions: Mis-insertion prevention shutters, fuse check function, user setting retention function, filter function, zero-adjustment, display value hold, auto hold, MAX/MIN value display, PEAK value display and auto-power save
- Display: Main and sub displays: 5-digits LCD, max. 60000 digits
- Display refresh rates: 5 times/s (Capacitance measurement: 0.05 to 2 times/s, depending on measured value, Temperature: 1 time/s )
- Power supply: LR6 (AA) alkaline batteries 4, Continuous use: 100 hours
- Dimensions and mass: 87 mm x 185 mm x 47 mm, 480 g (with test leads holder and batteries)
