Home > Dual Thermocouple Data Logger, Graphic LCD, USB with Temperature Calibration Certificate - IC-EL-GFX-DTC CAL-T
Lascar

Dual Thermocouple Data Logger, Graphic LCD, USB with Temperature Calibration Certificate - IC-EL-GFX-DTC CAL-T

ORDER ME IN
Product code: IC-EL-GFX-DTC-CAL-T

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The EL-GFX-DTC standalone USB data logger measures and stores over 250,000 temperature readings from two J, K, or T-type thermocouple inputs at a resolution of 0.1C. With temperature calibration certificate and 2 Years Extended Warranty!

Read more

$479.00 AUD + GST
 $526.90 AUD Inc. GST

The EL-GFX-DTC standalone USB data logger measures and stores over 250,000 temperature readings from two J, K, or T-type thermocouple inputs at a resolution of 0.1C. Initial configuration of the data logger is done with Lascar's EL-WIN-USB software running on Windows, compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10 (available as a free-download from www.easylogusb.com). Users can quickly set up the data logger and view downloaded data by connecting the device to the PC's USB port using the supplied cable.

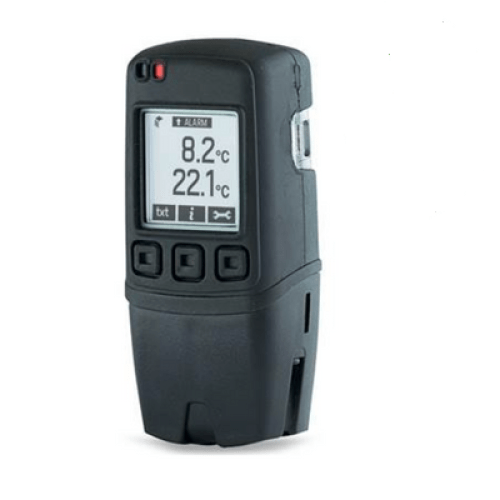

The data logger features a high-contrast graphic LCD and three-input buttons which allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added. Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date.

The two replaceable 1/2 AA batteries typically allow logging for up to one year.

As a recently introduced product, stock of this product may be limited. If your requirement is urgent please contact Lascar directly for up to date lead-time information before ordering online.

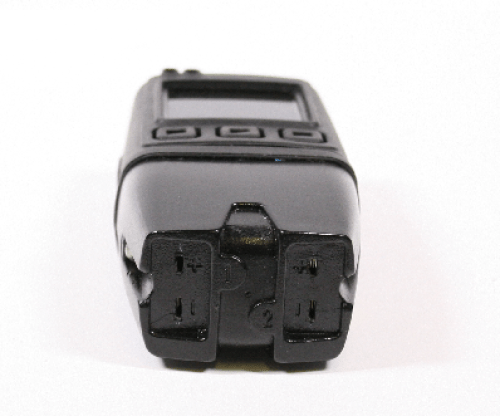

- Dual channel, compatible with K, J and T type Thermocouples
- Logging rates between 1 second and 1 hour
- Immediate, delayed, push-button or temperature triggered start mode
- Graphic LCD shows real-time readings, graph and current status
- Stores over 250,000 readings
- Includes calibration certificate for temperature

Specifications

Probe Measurement Range

K-Type: -200 - +1350 C

J-Type: -200 - +1190 C

TType: -200 - +390 C

Internal Resolution

0.1C/F*

Logging Rate

every 1s - every 12hr

Accuracy (overall error)

+-0.5C / +-0.9F**

Operating Temperature Range***

-10 - +40 C / -14 - +104F


Power Requirements:
2 x 1/2 AA 3.6V Lithium
Battery Life 1 year
* Above 999.9C/F display becomes 1C. Internal resolution remains at 0.1C/F.
** Quoted accuracy is for the data logger only when measuring within the specified operating temperature. Thermocouple error is not included and should also be taken into consideration.
*** Operating temperature applies to the data logger module only. Please consult the probe manufacturer for operating temperature of thermocouple.
At 25C and 10 minute logging rate with no alarm LEDs or sounder and minimal LCD use.
