E-Box LITE - Class 1 dBAir 48 hr Assessment System
Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

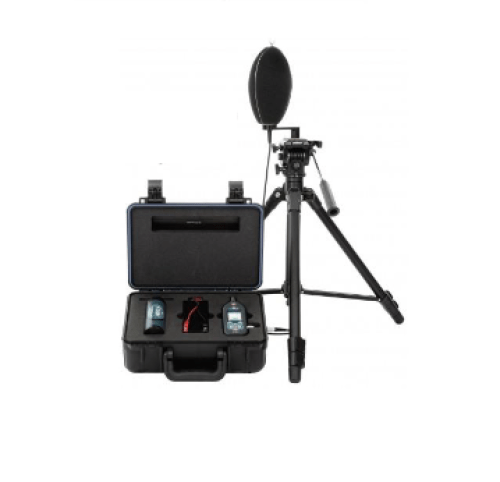

This is a sound datalogging system designed to assess and record environmental noise up to 48 hours. Includes the GA141E dBAir Class Environmental Class 1 meter, a sound calibrator, weatherproof housing, E-Box LITE for lead acid battery, lead acid battery, weatherproof case microphone cable and heavy-duty tripod.
$11,593.01 AUD Inc. GST
Specifications
Applicable Standards
|
IEC 61672-1:2013; IEC 61260-1:2014 (Where Octave Bands Fitted); IEC 61252:1993 amendment 1:2000 (Where Exposure Fitted)
|
Microphone:
|
Class 1 - 0.5 Pre-Polarised - Free Field (IEC) Pressure (ANSI) Sensitivity (50mV/Pa)
|
Noise Floor (Typical):
|
"A" Weighting < 16.0dB; "C" Weighting < 15.0dB; "Z" Weighting < 25.0dB
|
Measurement Ranges:
|
25 to 115dB (LOW); 50 to 140dB (HIGH)
|
Frequency Weightings:
|
A, C or Z
|
Frequency Range:
|
1 Hz - 20 kHz (electrical characteristics); 10 Hz - 20 kHz (including microphone)
|
Time Weighting:
|
Slow, Fast, Impulse
|
Display:
|
2.4" Full Colour TFT 240x320 pixels
|
Dual Measurements:
|
Simultaneous dual measurement with independent time and frequency weightings.
|
Measurement parameters:
|
LSPL, LE, LEQ, LMAX, LMIN, Peak, Ltm3, Ltm5, Lday, Levening, Lnight, Ldn, Lden, NA, 10 user-definable Ln values (pre-set to: L1, L5, L10, L20, L25, L50, L75, L90, L95, L90) plus LAF* for Noise act assessment.
|
Languages:
|
English UK, English US, Chinese, French, German, Italian, Portuguese, Brazilian, Russian, Spanish, Dutch, Greek
|
Time History:
|
Short Interval 10ms to 60m; Long Interval 1s to 24h; Smart Timer, Duration Timer or Interval Timer
|
Memory:
|
16GB
|
Input / Output Connection:
|
Micro USB Type B
|
Batteries:
|
4 x AA (1.5V)
|
Battery Life:
|
Up to 8 Hours continuous operation (screen settings dependent); system includes lead battery pack for increased battery life |
Dimensions Including Pre-Amplifier:
|
210mm (H) x 70mm (W) x 30mm (D)
|
Dimensions Excluding Pre-Amplifier:
|
145mm (H) x 70mm (W) x 30mm (D)
|
