Home > E-Box LITE Class 1 SONIK 16 Day Assessment System
Castle

E-Box LITE Class 1 SONIK 16 Day Assessment System

ORDER ME IN
Product code: IC-ELITEC1090

Backorder Now, once ordered your item will dispatch before the 19th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

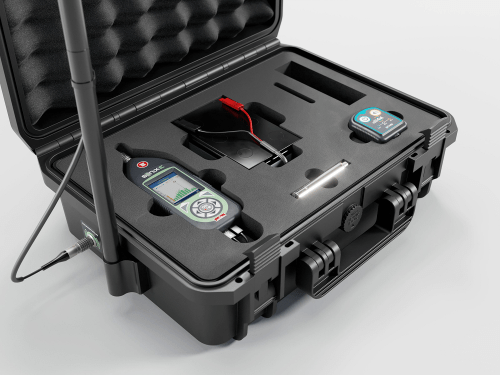

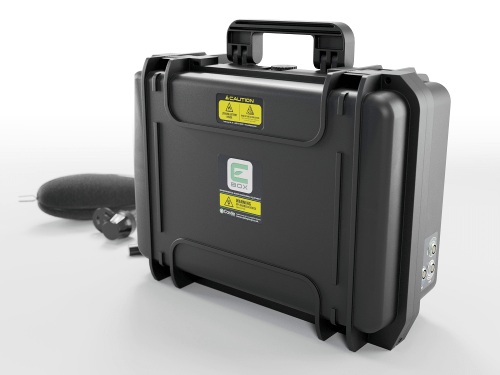

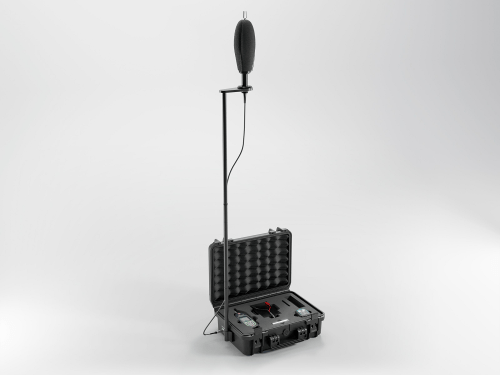

The E-Box LITE is the perfect solution if you are just after a simple all-in-one system to cover your environmental noise monitoring needs without the modem. This kit is based around the Castle E Class 1 SONIK environmental data logger and includes all the accessories needed for environmental sound monitoring.

  • Provides a reliable and effective unattended noise monitoring system for up to 16 days out of the box.
  • Lightweight, durable and long-lasting.

Read more

$11,389.00 AUD + GST
 $12,527.90 AUD Inc. GST
The E-Box LITE is the perfect solution if you are just after a simple all-in-one system to cover your environmental noise monitoring needs without the modem. The LITE version is lightweight, durable and long-lasting so is ideal if you need to leave unattended whilst you record your measurements.
When you need to perform unattended noise measurements that are to be left outdoors, the very last thing you need is the hassle of complicated equipment. Castle's E-Box provides an effective and powerful Noise Monitor that's ready for you to use to its full capabilities - straight inside the box.
Its appropriate for environmental assessments, construction Noise, boundary noise monitoring, compliance testing, handheld noise assessments, short term noise assessments and long term noise assessments.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
ELITEC1090 Features
- Dedicated Low Measurement Capability down to 20dB
- 4Mb internal flash memory, up to 4000 result sets
- FREE Cloud based or PC software available (upgradeable)
- 20-Hour Operation
- Weatherproof system available with optional modem for long-term monitoring
- Measures Lp, Leq, Lmax, LE, L10, L90, L(user)
- Measures parameters simultaneously including LAeq, LCeq and PeakC
- Under range and Overload indicators
- Ultra-simple to use
- A, C or Z frequency weighting selection
- A, C or Z Peak Measurements
- Slow, Fast and Impulse time weighting selection
Standard package includes:
GA142E SONIK-E Dedicated Environmental Data-logging Sound Meter Class 1, GA611 dBCal 3-level Acoustic Calibrator, Class 1, KA022 E-Box LITE case for Lead Acid Battery - dBAir/ Sonik Meters, MW404A Weatherproof Microphone Housing (Sonik/dBAir), ZL2141-03 Weatherproof Case Microphone Cable for Sonik/dBAir - 3m, KA027LiCHARGER KA027 Lithium Battery Charger 1.65A, KA027LiBATT Lithium Battery 12V 22Ah (E-box), BOXMOUNT Integrated Microphone Mounting Kit for E-Box, KA020RS E-Box Accessory Rucksack, PC007 dBdataPRO Noise Analysis Software & Cable

Specifications

Instrument Standards:
IEC 61672-1: 2002 Class 1 Group X
Linear Range:
20 to 90 dB/40 to 110 dB/60 to 130 dB
Frequency Range:
1 Hz to 20 kHz (electrical characteristics)/Class 1: 10 Hz - 20 kHz (including microphone)
Measurement Channels:
Two
Parameters:
LP, LEQ, LMAX, LPEAK, LE, LAVG, TWA, Under Range, Overload
Percentiles:
L10, L90 and either L1, L5, L50, L95, L99
Frequency Weighting:
A, C and Z. Combinations of A, A&C simultaneous or A&Z simultaneous available for Lp, Leq and Lmax
Time Weighting:
Slow, Fast and Impulse
Microphone:
Class 1: 0.5 Pre-Polarized - Free Field (IEC) Pressure (ANSI) Sensititvity (50mV/Pa)
Memory:
4MB Up to 4000 Data Intervals Maximum in one or multiple recordings
Noise Floor (Typical):
A Weighting less than 8.0dB, C Weighting less than 9.4dB, Z Weighting less than 11.8dB
Microphone Preamplifier:
Low Noise, Removable Preamplifier
Display:
2.4 Full Colour TFT 240x320 pixels
Batteries:
4 x AA (1. 5V), Typically 24 hours continuous use (screen settings dependent)
External Power:
Micro USB type B, 0.5
