Programmer & Data Collector for Lascar EasyLog USB - EL-DATAPAD

ORDER ME IN
Product code: EL-DATAPAD

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

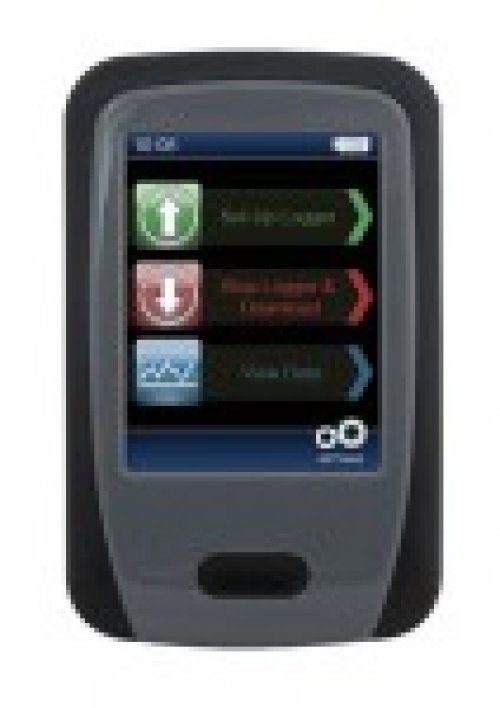

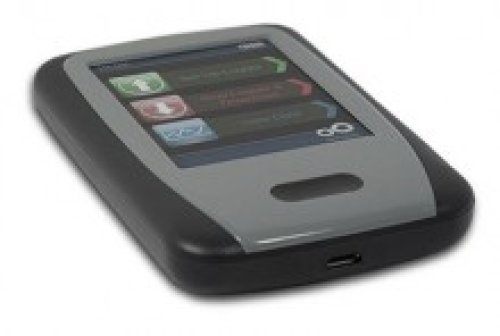

The EL-DataPad allows users of Lascar's EL-USB data loggers to configure their units and download data and view logging results on-the spot rather than removing the logger from the environment being measured and taking it to their PC.With 2 Year Extended Warranty!

Read more

Handheld Programmer and Data Collector for EasyLog USB range

*Collects and stores data from at least 500 data loggers
*Full or quick set-up of compatible EasyLog USB data
*Touch screen interface for navigation of menus
*Stored data can be transferred to a PC/Mac via micro USB cable
*Integral rechargeable lithium battery provides up to 8 hours use

The EL-DataPad allows users of Lascar's EL-USB data loggers to configure their units and download data and view logging results on-the spot rather than removing the logger from the environment being measured and taking it to their PC. This allows continual logging with shorter breaks in data collection, less travel for the user, on-site data collection in graph, legend and summary format and the ability for users to reconfigure loggers in the field.

Initial configuration of the data logger is done with Lascar's EL-WIN-USB software running on Windows (compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10).

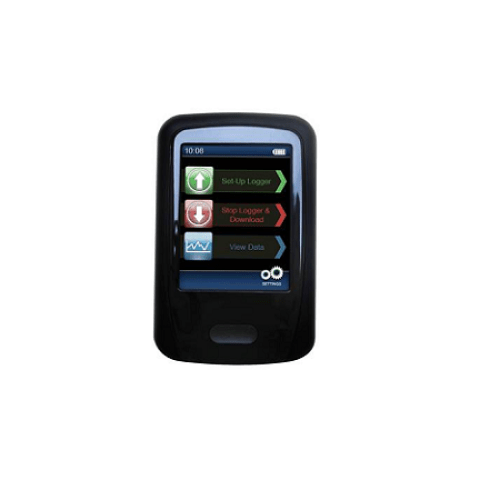

The logger is connected to the EL-DataPad via a standard USB port at the top of the viewer. Once connected, the user is guided through a simple touchscreen menu with options to Set-Up Logger, Stop Logger & Download and View Data. On-screen instructions follow the same structure as Lascar's EL-USB-WIN software for PC currently provided with each data logger.

Data from up to 100 loggers can be viewed on the EL-DataPad, with data from a further 400 units stored on the unit at any one time. Data can be transferred to a PC or Mac using a micro USB cable supplied with the unit. Once uploaded, data is saved in comma separated variable (csv) format, making it suitable for import into spreadsheet packages such as Microsoft Excel or graphed on a PC using Lascar's EL-WIN-USB software.

The EL-DataPad is compatible with the following EL-USB data loggers: EL-USB-1, EL-USB-1-LCD, EL-USB-1-PRO, EL-USB-2, EL-USB-2+, EL-USB-2-LCD, EL-USB-2-LCD+, EL-USB-TC, EL-USB-TC-LCD, EL-USB-LITE



.
