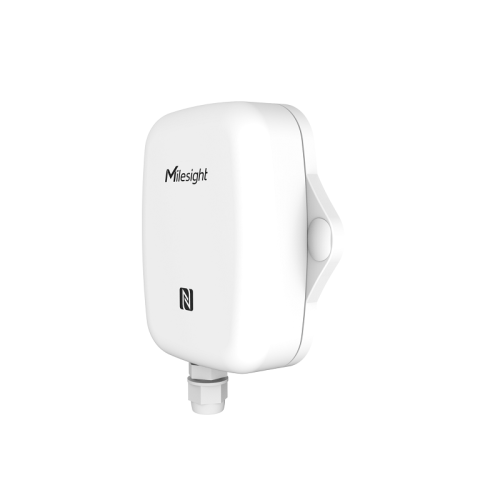

EM300-DI - Wireless Pulse Counter LoRaWAN Sensor
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The EM300-DI is a LoRaWAN pulse counter that can be used to remotely read metering data from water and power meters.
- Turns existing traditional meters into smart meters via LoRaWAN network for more efficient monitoring.
- Can store up to 2200 historical records.
- Also includes temperature and humidity sensors for environment monitoring.
Regular price
$109.40 AUD
+ GST
$120.34 AUD Inc. GST
$120.34 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The EM300-DI is a LoRaWAN pulse counter that can be used to remotely read metering data from water and power meters. It turns existing traditional meters into smart meters via LoRaWAN network for more efficient monitoring and can store its own records of measurements for export and analysis.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
EM300-DI-915M Features
- Flexible counting configuration to enable, stop, clear accumulated values
- Support digital filtering that filters interference signals to ensure more accurate counters
- Embedded with temperature and humidity sensors for environment monitoring
- IP67 waterproof enclosure for harsh environment applications
- Ultra-wide-distance transmission up to line of sight of 10km
- Store more than 2200 historical records and support retransmission to prevent data loss
- A built-in 4000 mAh replaceable battery and works for 5 years without replacement
- Equipped with NFC for easily configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
Frequency
|
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
|
Tx Power
|
16dBm(868)/20dBm(915)/19dBm(470)
|
Sensitivity
|
137dBm at 300bps
|
Work Mode
|
OTAA/ABP Class A
|
GPIO Port
|
1x GPIO Interface, Dry Contact
|
GPIO Work Mode
|
Pulse Counter, Digital Input
|
Cable Length
|
1 m (Customizable)
|
Applicable Meters
|
Reed switches meters or any other passive pulse meters
|
Temperature Measurement Range
|
-30 to + 70 C
|
Temperature Measurement Accuracy
|
0 to + 70 C (+/- 0.3 C), -30 to 0 C (+/- 0.6 C)
|
Temperature Measurement Resolution
|
0.1 C
|
Humidity Measurement Range
|
0% to 100% RH
|
Humidity Measurement Accuracy
|
10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
|
Humidity Measurement Resolution
|
0.5% RH
|
"Power On & Off "
|
NFC, Power Button (Internal)
|
Configuration
|
NFC Configuration via Mobile App
|
Power Supply
|
1x 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries)
|
Battery Life
|
5 years (10 min interval + 12 pulse counts per day)
|
Operating Temperature
|
30 to +70 C
|
Relative Humidity
|
Less than or equal to 95%
|
Material & Colour
|
ABS + PC, White
|
Ingress Protection
|
IP67
|
Dimension
|
105.6 x 85.2 x 27 mm (4.15 x 3.35 x 1.06 in)
|
Installation
|
Screw Mounting
|
