EM300-MCS - Wireless Magnetic Contact Switch LoRaWAN Sensor

ORDER ME IN
Product code: EM300-MCS-915M

Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

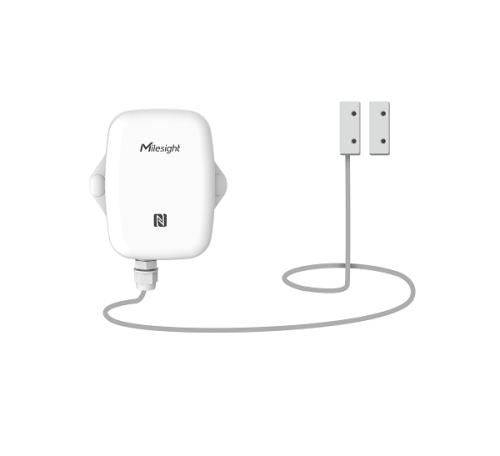

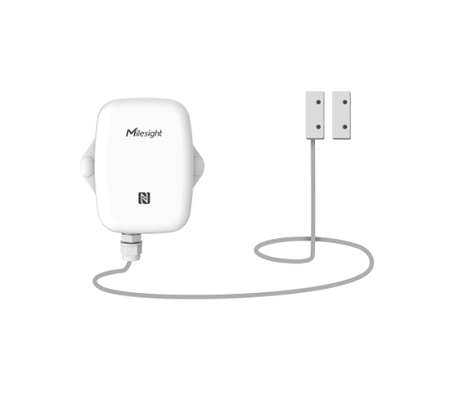

The EM300-MCS is a compact magnet switch sensor for detecting open/close status of objects (such as doors or windows) and transmitting an alarm using LoRaWAN technology.

  • With built-in temperature and humidity sensors that makes it easier to monitor indoor working environments.
  • Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data and remotely and visually and receive alarms via mobile App.
  • Battery life can last up to 5 years.

Read more

$129.00 AUD + GST
 $141.90 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The EM300-MCS is a compact magnet switch sensor for detecting open/close status of objects (such as doors or windows) and transmitting an alarm using LoRaWAN technology.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
EM300-MCS-915M Features
- High sensitivity with door and window security detection
- Embedded with temperature and humidity sensors for environment monitoring
- Monitor and display real-time data on what matters in your indoor air quality.
- Ultra-wide-distance transmission up to line of sight of 10km
- IP67 UV-resistant and waterproof enclosure for harsh environment applications
- Built-in 4000 mAh replaceable battery and works for 5 years without replacement
- Equipped with NFC for easily configuration Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution

Specifications

Frequency
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power
17dBm (470) / 16dBm (868) / 20dBm (915)
Sensitivity
-137dBm at 300bps
Work Mode
OTAA/ABP Class A
Lead Cable
1007UL #22AWG 260mm
Type
Normally closed
"Distance of magnets "
20-30mm
Distance of holes
22mm
Resolution
0.1 C
Temperature measuring range
-30 to 70 C
Temperature accuracy
0 to 70 C: +/- 0.3 C; -30 to 0 C: +/- 0.6 C
Temperature resolution
0.1 C
Humidity measuring range
0 to 100 %RH
Humidity accuracy
+/- 3% (10 to 90%RH); +/- 5%(Other ranges)
Humidity resolution
0.10%
Power supply
ER18505 Li-SOCl2 4000 mAh (8000 mAh optional)
Battery life
Up to 5 years ( for 1 battery)
Operating temperature
-40 to 70 C
Ingress Protection
IP67
Dimension
88 x 87 x 27 mm
Mounting
Wall (screws or 3M adhesives)
