EM500-PT100 - Industrial Temperature LoRaWAN Sensor (-50 to 500 C)
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

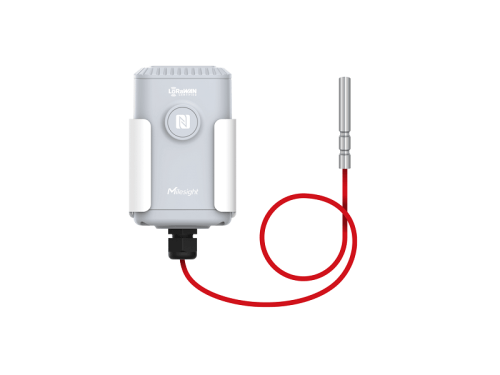

THe EM500-PT100 resistance temperature sensor is designed for measuring wide range of temperature in harsh environments and transmitting data using LoRaWAN technology.
- Measurement range of -50 to 500 C.
- Equipped with a highly accurate temperature sensor PT100.
- Uses LoRaWAN technology to transmit data with the Milesight Gateway & Cloud Software.
Regular price
$279.00 AUD
+ GST
$306.90 AUD Inc. GST
$306.90 AUD Inc. GST
Note: Requires a Gateway to utilise the IoT Cloud software
The EM500-PT100 resistance temperature sensor is designed for measuring wide range of temperature in harsh environments and transmitting data using LoRaWAN technology. With this low power consumption technology, EM500-PT100 can work up to 10 years with 19000 mAh battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
EM500-PT100-915M-T500 Features
- Corrosion resistance cable and multiple probe options
- 3 wire connection for high precision
- Ultra-wide-distance transmission up to line of sight of 10km
- IP67 waterproof enclosure for harsh environment applications
- Built-in 19000 mAh replaceable battery and work for 10 years without replacement
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
Frequency
|
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
|
Tx Power
|
20dBm
|
Sensitivity
|
-137dBm at 300bps
|
Work Mode
|
OTAA/ABP Class A
|
Temperature Measurement Range
|
-50 to 500 C |
Temperature Resolution
|
0.1 C
|
Temperature Accuracy
|
+/- 0.5 C
|
Probe Length
|
1.5 m
|
Probe Type
|
Straight tube (Bolt-on ring, magnet and other types customizable)
|
Power Supply
|
19000 mAh Li-SOCl2
|
"Operating Temperature "
|
-30 to +70 C
|
Ingress Protection
|
IP67
|
Dimension
|
105.4 71 69.5 mm (Sensor and cable are not included)
|
Mounting
|

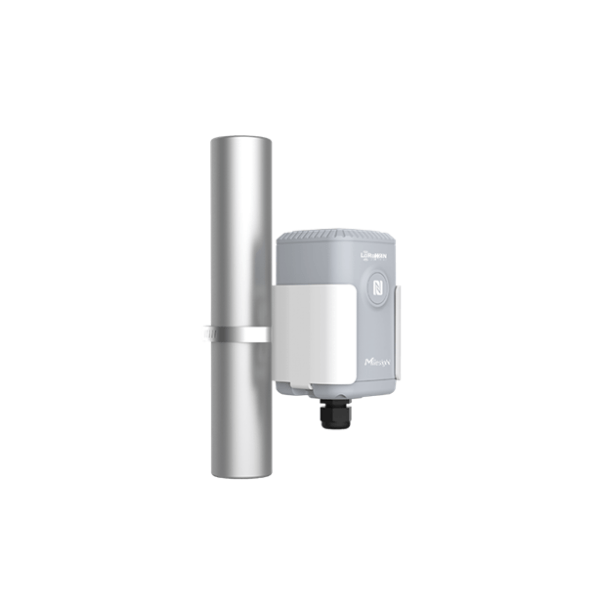

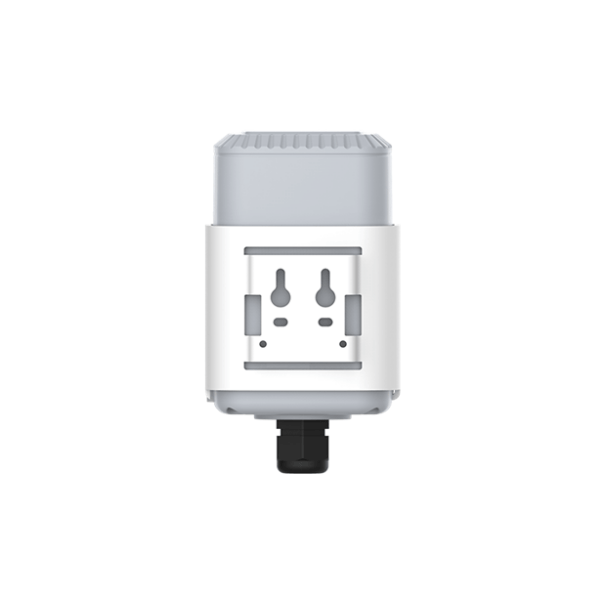

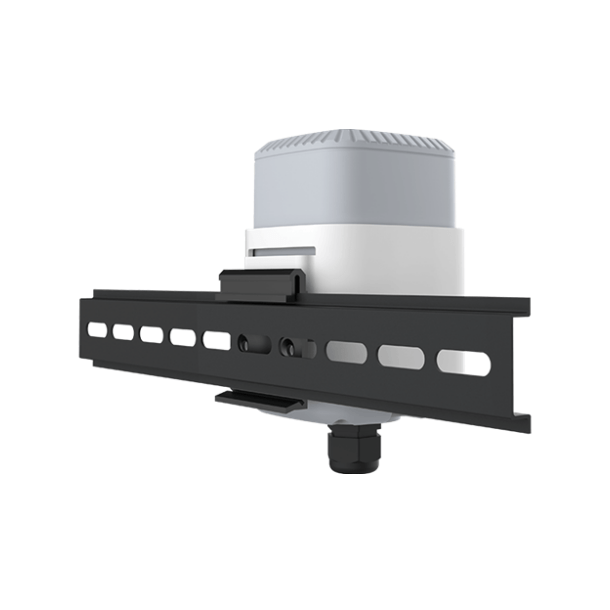

DIN rail, wall, pole mounting
|
