Home > EM500-SWL - Wireless Submersible Water Level LoRaWAN Sensor (10m)
Milesight

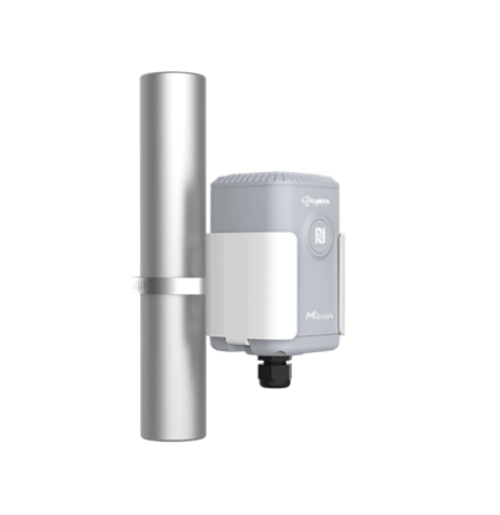

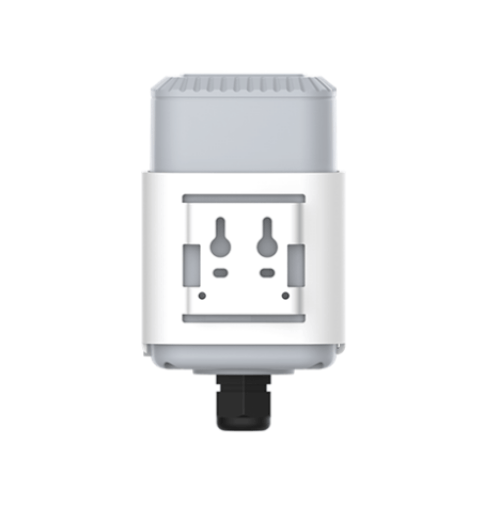

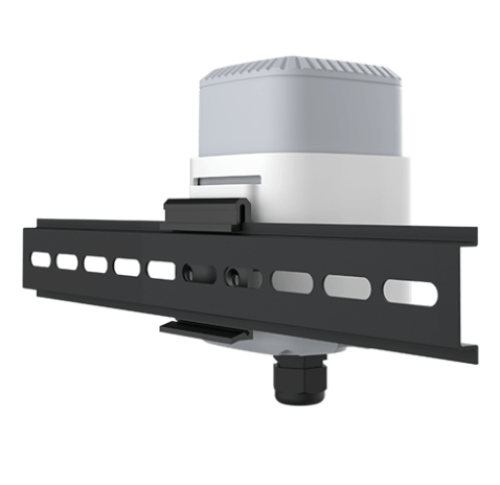

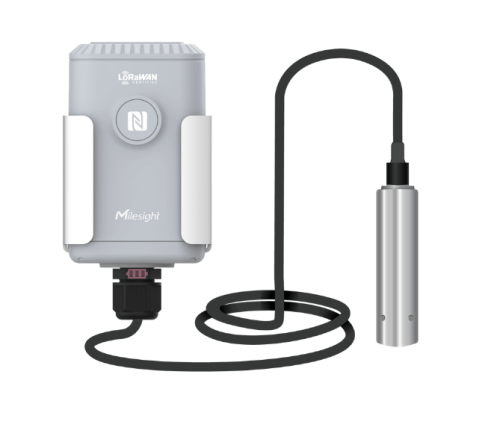

EM500-SWL - Wireless Submersible Water Level LoRaWAN Sensor (10m)

DISCONTINUED
Product code: EM500-SWL-915M-L010

Backorder Now, this item will leave store in 3-4 weeks, call 1300 737 871 ( NZ 0800 737 871 ) to confirm

The EM500-SWL is a robust LoRaWAN liquid level sensor designed for harsh environments. With extended battery life and remote data management, it is widely used for tank and river level monitoring.

  • Submersible up to 10 meters.
  • The sensor is submersible; not affected by foam, wind, or rain.
  • Ultra-low power consumption and easy deployment. Built-in 19000 mAh high-capacity battery can be used for 10 years.

Read more

Note: Requires a Gateway to utilise the IoT Cloud software
The EM500-SWL-915M-L010 is a 10m depth is fully submerged in liquid, making it resistant to corrosion and failure. With low power consumption technology, the EM500-SWL can work for up to 10 years with a 19000 mAh battery.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
EM500-SWL-915M-L010 Features
- Stainless probe with corrosion resistance
- Ultra-wide-distance transmission up to line of sight of 10km
- IP67 waterproof enclosure for harsh environment applications
- Built-in 19000 mAh replaceable battery and work for 10 years without replacement
- Equipped with NFC for easy configuration
- Compliant with standard LoRaWAN gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution

Specifications

Frequency
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power
20dBm
Sensitivity
-137dBm at 300bps
Work Mode
OTAA/ABP Class A
Measurement Range
10 meters
Accuracy
+/- 0.5
Probe Length
At least should be 1-1.5m longer than measuring range
Power Supply
19000 mAh Li-SOCl2
Operating Temperature
Transceiver: -30 to +70 C; Pressure Sensor: -10 to +60 C
Ingress Protection
IP66 (IP67 as required)
Dimension
105.4 71 69.5 mm (Probe and cable are not included)
Mounting
" DIN rail, wall"
