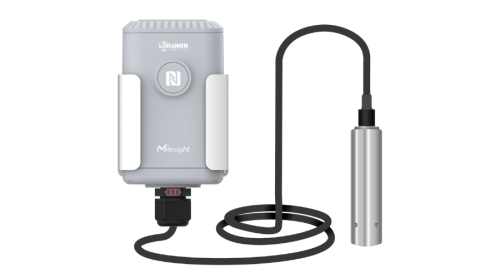

EM500-SWL - Wireless Submersible Water Level LoRaWAN Sensor (3m)
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The EM500-SWL-915M-L003 is a robust LoRaWAN liquid level sensor designed for harsh environments. With extended battery life and remote data management, it is widely used for tank and river level monitoring.
- Submersible pressure sensor not affected by foam, wind, or rain.
- With low power consumption technology, the EM500-SWL can work for up to 10 years with a 19000 mAh battery.
- Utilising LoRaWAN technology, the EM500-SWL can transmit data to Milesight's LoRaWAN gateway and IoT Cloud solution, allowing users to manage all sensor data remotely and visually.
$593.45 AUD Inc. GST
Specifications
Frequency
|
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
|
Tx Power
|
20dBm
|
Sensitivity
|
-137dBm at 300bps
|
Mode
|
OTAA/ABP Class A
|
Measurement Range
|
3m
|
Accuracy
|
+/- 0.5% FS
|
Probe Length
|
At least should be 1-1.5m longer than measuring range
|
Power Supply
|
Built-in 19000 mAh Li-SOCl2 battery, up to 10 years service life
|
Ingress Protection
|
IP66 (Transceiver, IP67 as required)
|
Operating Temperature
|
-30 to 70 C (Transceiver), -40 to 85 C (Sensor)
|
Dimension
|
105.4 71 69.5 mm (Probe and cable are not included)
|

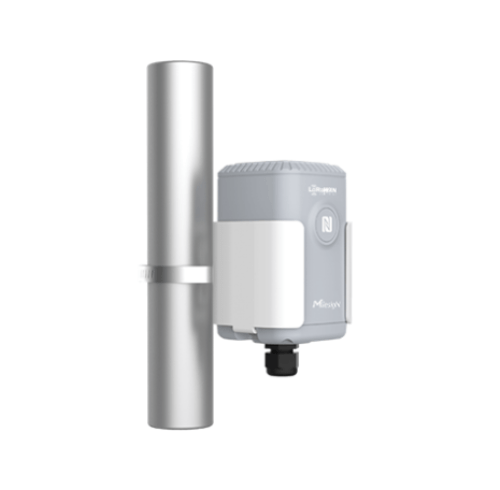

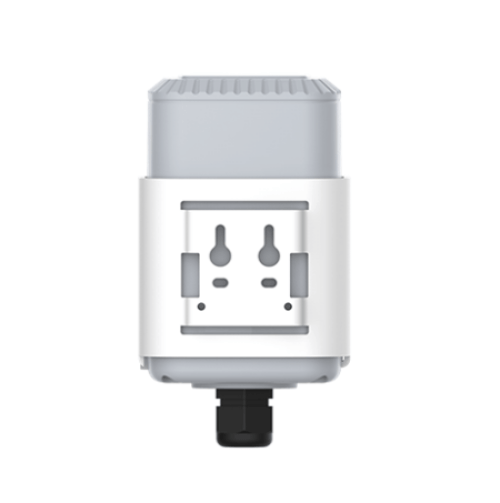

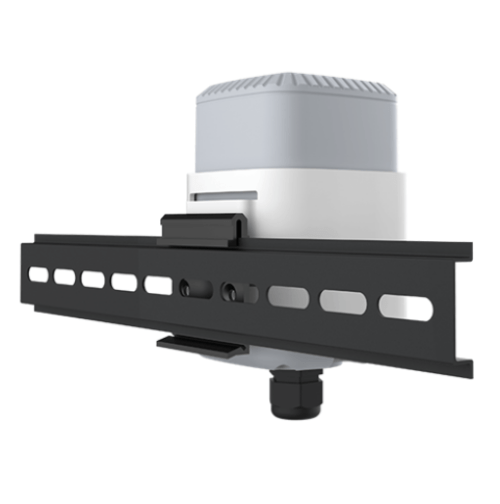

Mounting
|
DIN rail, wall
|
