Exhaust Temperature Profiling Kit
Backorder Now, once ordered your item will dispatch before the 20th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,304.60 AUD Inc. GST

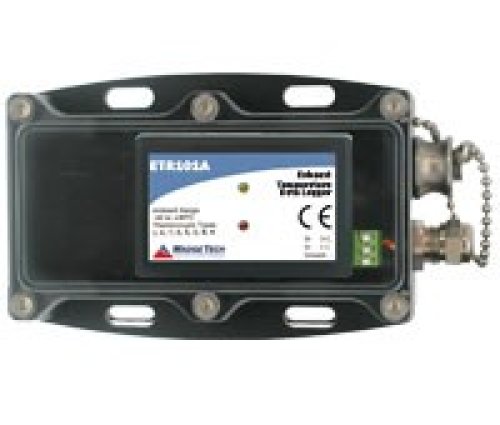

Setup is fast and easy. The data logger, which is contained within the water resistant enclosure, is mounted to the vehicle. Using the MadgeTech software, the logger is programmed to record for a set period, generally three to five days. Data is stored in the data logger, and is downloadable at any time via a pc or laptop computer. The complete temperature profile is then provided to the diesel particulate filter (DPF) manufacturer, aiding in the selection of the correct DPF for the exhaust system. Many DPF manufacturers, including Donaldson Corp., recommend the use of temperature profiling equipment, such as the MadgeTech ETR101A, to aid in the selection of the appropriate diesel particulate filter.
Specifications
Temperature
Temperature Sensor |
Semiconductor |
|---|---|
Temperature Range |
-40C to +80C (-40F to +176F) |
Temperature Resolution |
0.1C (0.18F) |
Temperature Calibrated Accuracy |
0.25C (0.45F) |
Remote Channel Temperature Sensor |
Thermocouple Type K |
Remote Channel Temperature Range |
-260 to +1370C |
Remote Channel Temperature Resolution |
0.1C |
Remote Channel Temperature Calibrated Accuracy |
0.5C |
General
Memory |
500,000 readings; software configurable memory wrap 250,000 readings in multiple start/stop mode |
|---|---|
Reading Rate |
1 second up to 24 hours |
Baud Rate |
115,200 |
Cold Junction Compensation |
Automatic |
Channels |
1 Internal & 1 Remote |
LED Indicators |
Red and Green |
Push-Button Start |
Yes |
Battery Life |
10 years typical, dependent upon frequency and duty cycle |
Material |
ABS plastic |
Dimensions |
1.4" x 2.2" x 0.6 (36mm x 56mm x 16mm) |
Operating Environment |
-40~+80C, 0~95%RH non-condensing |
Required Interface Package |
IFC200 |
This logger comes with free software and USB connection to attach to your computer.
