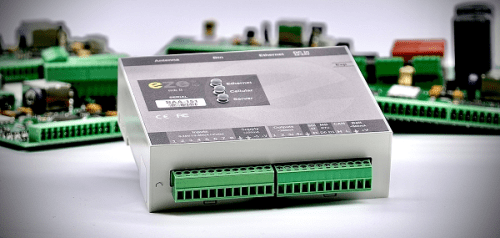

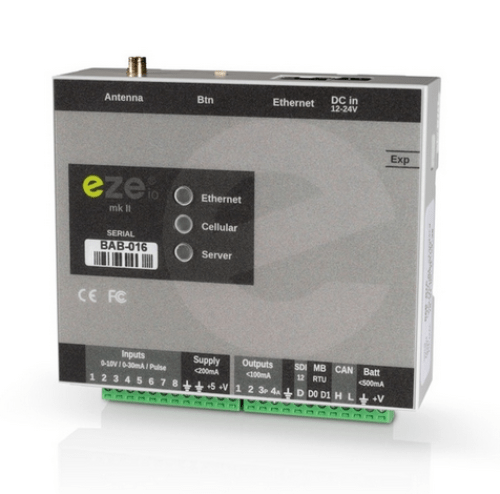

The New ezeio mkII is a powerful, compact IIoT device with Ethernet and LTE Cat M1 connectivity. Designed for ease of use and versatility, the ezeio is ideal for remotely monitoring and controlling almost any device or installed with OEM equipment.
The ezeio comes standard with analog and digital inputs/outputs, plus Modbus RTU/TCP, SDI-12 and CAN connectivity. There is also alarming via O/P, Email or SMS, remote control and automation functionality via the web based user interface which has Multi-user, multi-site consolidated management and dashboard display functionality.
Supports up to 90 individual fields Modbus/RTU Master port (RS485), up to 35 devices.

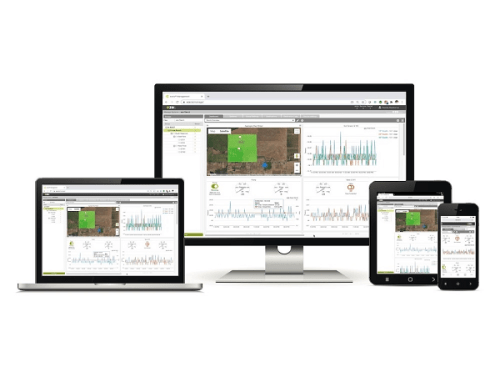

The powerful eze.io User Interface
Through the eze.io User Interface, users can access any number of ezeio Hardware units based on their individual access permissions. Every system feature and functionality is 100% managed through the web portal. This improves the security benefits too as there is no other way to interact with the system ... not remotely, not locally on the hardware level, only through the web portal!
- Account Management
- Configuration Management
- Scripting Editor
- Live status
- Dashboards
- Alarms & Notifications
- Timers & Schedules
- Mapping & Geofencing
Inputs/outputs
8 general purpose inputs (discrete, on pluggable terminal, fully configurable):
- 0 to 10VDC (2.5mV resolution, more than 65 kiloohms input impedance)
- 0 to 30mA (12.5uA resolution, 200 internal shunt)
- 0 to 1 megaohm resistance (less than 2% accuracy in the range 2k to 700 kiloohms)
- Thermistor (100 kiloohms/10 kiloohms /2 ohms types, internal excitation)
- Dry switch (on/off, optional internal excitation)
- Pulse (S0 or KYZ, max. 400Hz, optional internal excitation, monitor pulse rate and/or pulse count/ frequency/interval)
- Electronic configuration of pull-up / shunt
- Protected with PTC
- Internal 0.5% reference
4 general purpose outputs (discrete, on pluggable terminal, fully configurable)
- Output 1/2 - digital (on/off), sourcing max. 200mA each
- Output 3 - PWM output or on/off output (sourcing max. 200mA)
- Output 4 - analog, 0-10V, 0.1V resolution (sourcing up to 10mA)
- Supports plug-in sidecar ezeio I/O expansion (third-party I/O can be added via the communication ports)
Other specifications:
- Modbus/TCP server & client (TP 10/100 Ethernet): Configurable port numbers (standard 502)
- CANbus: Supports J1939, Optionally used for I/O expansion
- SDI-12 port: Supports v1.4, Optional support for serial NMEA 0183 (GPS)
- SMA antenna connector (cellular)
- +5V DC regulated output, max. 200mA
- PTC fused DC output, max. 200mA for sensors
- On-board RTC (24h supercap backup)
- 3 dual-color indicator LEDs
- Pushbutton for controlled start-up/reset
