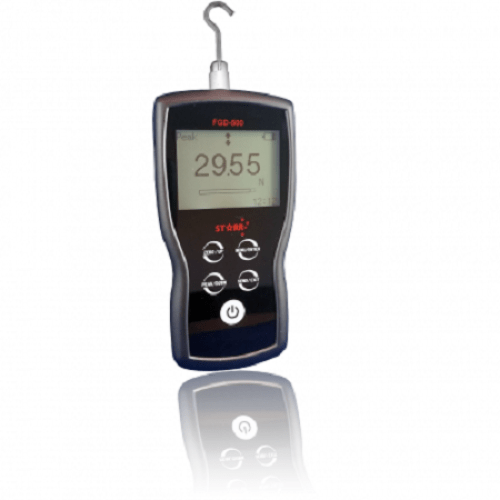

FGD Force Gauge (500N) - IC-FGD-1-500N
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The FGD series Digital Force Gauge can be used for measuring compression and tension forces in industrial applications. All models include 6 standard attachments, software for data output and USB charging cable.
- 500N capacity.
- Records up to 1000 data entries with output.
- User adjustable low/high alarm limit setting.
$769.45 AUD Inc. GST
Standard delivery kit includes force gauge, 6 standard push/pull attachments (hook, flat, chisel, cone, v-notch anvil and 80mm extension rod), software CD, USB charging/data cable and mains AC adapter, factory calibration certificate and user manual.
Features:
- Compact, ergonomic body with rugged black anodized coating and touch sensitive keypad
- 1000 entry internal data logger and software for output
- Auto-orientation display screen (switches instantly when gauge is inverted)
- Visual and audible overload alarm protection
- User adjustable low/high alarm limit setting
Choosing force capabilities:
There are many different force capacities available from as little as 2N (200gf) all the way up to 1000N (100kgf). It is important to choose a gauge with suitable capacity to ensure the load cell cannot be overloaded easily when performing your testing and it is recommended to move up to the next model as a precaution, provided the display resolution is acceptable.
For example, if you are testing around 40-45kgf, consider the 100kgf version to be safe as the 50kgf will be operating up around 90% of its capacity.
Importantly, at very low test forces (200gf to 5kgf) it can be very easy to overload the load cell through accidental impact by even a thumb and forefinger.
Specifications
Accuracy: 0.2% F.S.
Selectable Units: N, gf, kgf, ozf, and lbf. (Selectable)
Display: LCD with LED Backlight
Overload Capacity: 120% F.S.
Measurement Mode: Track, Peak, Auto-Peak
Sampling Rate: 1000 Hz
Memory: 1000 data
Power: Ni-MH rechargeable batteries
Battery Life: Approx. 20 hours per charge
Charger/Adaptor: Universal USB charger, Input:110~240VAC
Outputs: USB, set point output
Dimensions: 160 x 73 x 34mm
