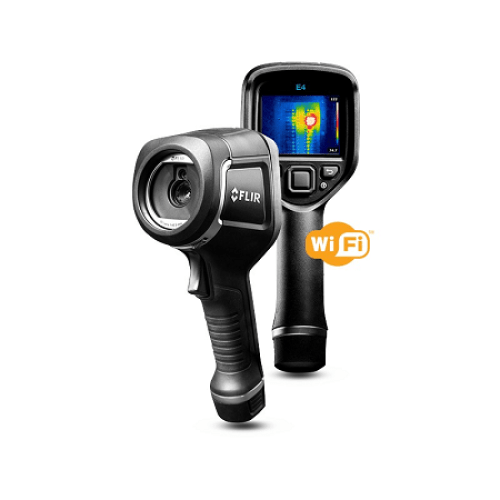

FLIR E4 IR Camera w/MSX and WiFi 80 x 60 Resolution/9Hz
Unfortunately, the E4IR has been discontinued, check out the Flir-E8-Pro as an alternative.
Flir E4 Thermal Imaging Camera MSX (Multi-Spectral Dynamic Imaging) enabled, 80x60 pixels with built in visual camera. WiFi for image transfers.
Unfortunately, the E4IR has been discontinued, check out the
Flir-E8-Pro as an alternative.
The FLIR E4 with Wi-Fi is an easy-to-use thermal imaging camera for electrical, mechanical, building, and HVAC/R applications. Find hidden problems, take accurate temperature readings, and confirm repairs easily, thanks to the 4,800 (80 x 60) pixel infrared resolution and MSX image enhancements. Then,
streamline your work using the built-in Wi-Fi, for uploading and sharing images and data through the FLIR Tools mobile app.
Features:
- WiFi Connectivity: Upload images and data to the FLIR Tools app over Wi-Fi, for instant sharing and reporting.
- Crisp Resolution: The E4 has a crisp, 4,800 pixel detector that is just the right size for your application as well as your budget.
- A focus-free lens and simple button navigation to on-screen settings makes this camera easy to operate.
- MSX Image enhancement: The E4 with Wi-Fi features FLIR's unique MSX that adds key details from the onboard visible light camera to the entire infrared
image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic
heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD.
Specifications
- Accuracy: +/- 2 C (+/- 3.6 F) or +/- 2% of reading, for ambient temperature 10 C to 35 C (50 F to 95 F) and object temperature above 0 C (32 F)
- Area: Box with max./min.
- Isotherm: Above/below/interval
- Object Temperature Range: -20 C to 250 C (-4 F to 482 F)
- Reflected apparent temperature correction: Automatic, based on input of reflected temperature
- Thermal Sensitivity/NETD: <0.15 C (0.27 F) / <150 mK
- Camera size (L x W x H): 244 x 95 x 140 mm (9.6 x 3.7 x 5.5 in)
- Camera weight incl battery: 0.575 kg (1.27 lb.)
- Color: Black and gray
- Color palettes: Black & white, iron, and rainbow
- f-number: 1.5
- Field of view (FOV): 45 x 34 degrees
- Focus: Focus free
- Image Adjustment: Automatic adjust/lock image
- Image Frequency: 9 Hz
- Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- Minimum Focus Distance: 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail
- Picture-in-Picture: IR area on visual image
- Spatial resolution (IFOV): 10.3 mrad
- Digital Camera Resolution/FOV: 640 x 480/55 x 43 degrees
- Spotmeter and Area: Center spot; box with min./max.
- Detector Type: Uncooled microbolometer
- IR Resolution: 80 x 60 pixels
- Set-up Commands: Local adaptation of units, language, date and time formats
- Spectral Range: 7.5 x 13 um
- Certifications: UL, CSA, CE, PSE and CCC
- AC Operation: AC adapter, 90 x 260 VAC input, 5 VDC output to camera
- Interface: USB Micro: Data transfer to and from PC and Mac device
- Charging system: Battery is charged inside the camera or in specific charger.
- Charging Time: 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management: Automatic shut-down
- Battery type & operating time: Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
Wifi specifications:
- Standard: 802.11 b/g/n
- Frequency range: 2400 x 2480 MHz/5150 x 5260 MHz
- Max. output power: 15 dBm
Includes:
- Infrared camera
- Hard transport case
- Battery (inside camera)
- USB cable
- Power supply/charger with EU, UK, US and Australian plugs
- Manual
