Home > FLIR Flexible Clamp Meter with LCD and Bluetooth, 10 In
Flir

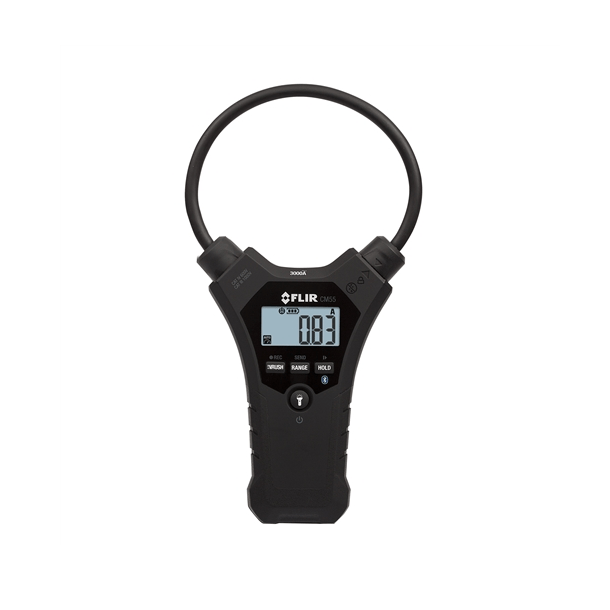

FLIR Flexible Clamp Meter with LCD and Bluetooth, 10 In

ORDER ME IN
Product code: IC-CM55

Backorder Now, once ordered your item will dispatch before the 30th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Flir CM55 has a flexible coil clamp (10-inch (25.4cm) for taking measurements in tight and awkward spots. With Bluetooth communication for remote viewing and data transfer using iOS and Android devices using the FLIR Tools mobile app.

Read more

$299.00 AUD + GST
 $328.90 AUD Inc. GST

The Flir CM55 has a flexible coil clamp (10-inch (25.4cm) for taking measurements in tight and awkward spots. With Bluetooth communication for remote viewing and data transfer using iOS and Android devices using the FLIR Tools mobile app.

Features:
- Take measurements in tight spots: Snake the flexible coil clamp around obstacles with ease, even in deep, crowded cabinets.
- Easy inspection and navigation: Designed with your convenience in mind, the CM55 is tangle-free and has bright, dual-LED worklights to illuminate dark cabinets.
- Safe, remote viewing: Transfer data to iOS and Android devices with FLIR Tools. Multiple units wirelessly connect for remote viewing of multiphase systems.

Specifications

- AC Current Bandwidth: 45Hz to 500Hz (sine wave)
- AC Current Ranges and Resolution: 30.00A, 300.0A, 3000A
- Basic AC current accuracy (of reading): +/- 3.0% + 5 digits
- Inrush Current: Min 0.5A, 100mS
- Maximum AC current: 3000A
- Positional Error [distance from optimum]: 0.6" (15mm) +/- 2.0% / 1.0" (25mm) +/- 2.5% / 1.4" (35mm) +/- 3.0%
- Flex Coil Diameter: 0.3" (7.5mm)
- Flex Coil Length: 10" (25cm)
- Flex Coil Tip Diameter: 0.5" (13mm)
- Max Conductor Diameter: 2.4" (6cm)
- Data Record Mode: 20,000 points , 1 min sample rate
- Warranty: Limited lifetime with registration
- Worklights: Two white LEDs
- Agency Approvals: FCC Class B, CE, UL
- Bluetooth range max: 32' (10m)
- Wireless ID# max: Up to 20
- Drop test: 9.8' (3m)
- Safety Rating: CAT IV 600V, CAT III 1000V
- Standards: EN61010-1, EN61010-2-032, EN61326-1
- Gallery: 17543
- Maximum resolution: 0.01A
