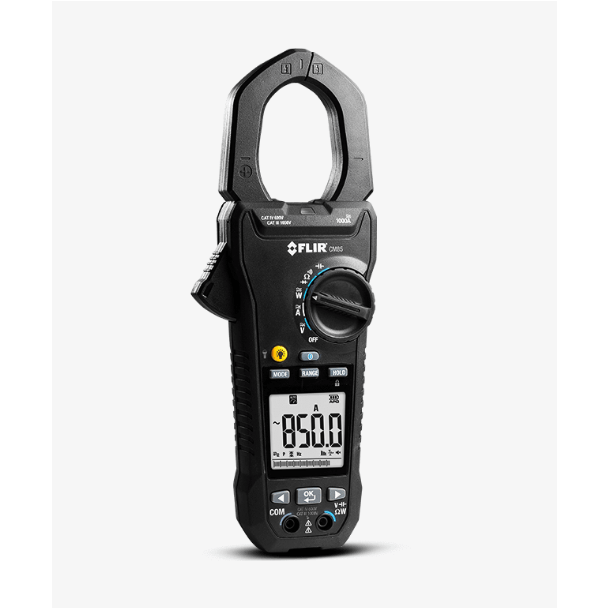

FLIR Industrial 1000 Amp Power Clamp w/VFD Mode and Bluetooth METERLiNK

ORDER ME IN
Product code: IC-CM85

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The FLIR CM85 is an industrial power clamp meter with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters for full-scale equipment.

Read more

$675.00 AUD + GST
 $742.50 AUD Inc. GST

The FLIR CM85 is an industrial power clamp meter with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters for full-scale equipment.

The CM85 helps users accurately analyze voltage in complex machinery by including harmonics, inrush, current, and phase rotation testing. The meter also features Bluetooth for remote viewing and data sharing from compatible mobile devices, and METERLiNK technology to wirelessly embed readings into infrared images on compatible FLIR cameras.
Features:
- Superior accuracy: The True RMS clamp meters provide VFD Mode for superior accuracy while working on VFD-controlled equipment, and advanced power efficiency and harmonics measurements enable system-level performance analysis.
- Reliable performance: Features Inrush mode to capture AC Current spikes during start-up, and phase-rotation testing to ensure motor and power source alignment.
- View data remotely, share instantly: View readings from your mobile device via Bluetooth; METERLiNK technology wirelessly embeds data into thermal images on compatible FLIR cameras.

Specifications


- Jaw Opening: 45 mm (1.77")
- Warranty: Limited Lifetime
- Certifications: CE, UL, FCC
- Bluetooth range max: 32 ft (10 m)
- AC VFD Voltage: Range 1000 V/ Basic Accuracy +/- 1%
- AC/DC Current: Range 1000 A / Basic Accuracy +/- 2%
- AC/DC Voltage: Range Range 1000 V / Basic Accuracy +/- 1% / 0.7%
- Active Power: Range Range 10 kW to 60 kW, (10 V, 5 A min) / Basic Accuracy +/- 3%
- Capacitance: Range 3.999 mF Max / Basic Accuracy +/- 1.9%
- Category Rating: CAT IV-600V, CAT III-1000V
- Continuity Threshold: Range 30 ohm / Basic Accuracy +/- 1%
- Diode Test: Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V
- Frequency: Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5%
- Harmonics: Range 1st-25th Order / Basic Accuracy +/- 5%
- Inrush Current: Range 1000 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3%
- Resistance: Range 99.99 kiloohm Max / Basic Accuracy +/- 1%
- Total Harmonic Distortion: Range 0.0 to 99.9% / Basic Accuracy +/- 3%
