The MR60 has an integrated pinless sensor and an external pin probe, providing the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
Features:
- Flexibility for destructive or non-destructive measurements: Quickly scan for moisture using the integrated pinless moisture sensor. An external pin
probe is included for resistive moisture content measurements in a variety of substrates.
- Clear, accurate readings: Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots that you can transfer and
view via PC/USB. Set a programmable alarm with audible and color visual alerts to notify you of high moisture.
- Simple to use and create reports: MR60 features a bright, easy-to-read color display and intuitive graphical user interface with helpful function labels
in local languages. Save files and generate reports with free FLIR Tools PC software. No special training required!
Specifications
Pin Moisture Via External Probe Range per group
Wood groups 1-5 (oak, most maples, pine, hickory, teak, sycamore):
- Range: 7% - 30%, +/- 1.5% (reference only)
- Response Time: 750 ms
Wood groups 6-9 (building materials: plywood, drywall, OCD):
- Range: 0- 20% (reference only)
- Response Time: 750 ms
Pinless:
- Moisture Range: 0100 relative measurement
- Moisture Depth: 1.9 cm (0.75 inch) maximum
- Sample Rate: 10Hz (approx., both modes)
- Measurement Resolution: 0.1
- Response Time: 100 ms
General specifications:
- Display type (W H): QVGA (320 240) pixel 2.3 64K color TFT graphical display
- Stored Data File Format: Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included
- Saved Image File Format: Bitmap (.bmp) with measurement values overlaid
- Stored Image Capacity: 9999 images
- Internal Memory: 4GB
- Certification Standards: EN61326 (EMC), EN61010 (Battery + Charger)
- Agency Approvals: FCC Class B, CE, UL
- Power Requirements: Integrated rechargeable battery
- Continuous Run Time: 18 hours max
- Typical Usage: 4 work weeks
- Auto Power Off: Programmable: OFF, 1, 5, or 20 minutes
- Power Adapter: 100240 V input/ 5 V 1A output
- Battery: 3.7 V, 3000mAh Li-ion rechargeable via micro USB
- IP Rating/Drop Test: IP54/3m (9.8 ft)
- Operating Temperature: 0 to 50 C (32 to 122 F)
- Storage Temperature: -10 to 60 C (14 to 140 F)
- Operating Humidity: less than or equal to 90%, 0 to 30 C (32 to 86 F); less than or equal to 75%, 30 to 40 C (86 to 104 F); less than or equal to 45%,
40 to 50 C (104 to 122 F)
- Storage Humidity: 90% RH

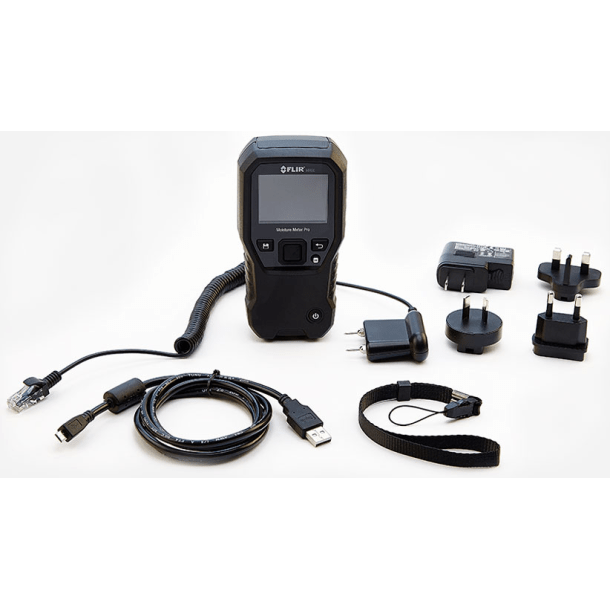

Includes:
- Moisture Meter
- MR02 Pin Probe
- Quick Start Guide
- International Charger
Warranty:
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
