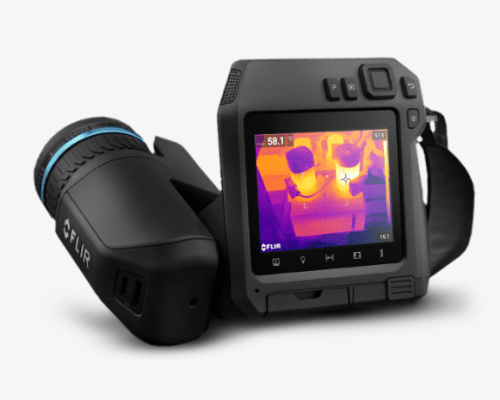

The FLIR T530 has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180 degrees rotating lens platform and a bright 4" LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR's industry-leading image quality ensure you'll find and diagnose problems quickly.
The T530 uses the power of FLIR Vision Processing to deliver detailed, smooth pictures with very little image noise. FLIR Vision Processing combines
IR resolution, MSX, and UltraMax image enhancement with FLIR's proprietary adaptive filtering algorithms to produce brilliant thermal images with up
to 3.1 million pixels. Plus, the T530 is sensitive enough to detect temperature differences down to <30 mK, for clear, low-noise results.
Features:
- Laser-assisted autofocus guarantees you'll get the tack-sharp focus, for accurate temperature readings that lead to quickbut soliddecisions.
- The T530's optical block rotates 180 degrees, so you can image targets at any angle - comfortably - all day long.
- The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.
Specifications
Measurement Analysis:
- Accuracy: +/- 2 C (+/- 3.6 F) or +/- 2% of reading
- Area measurement information: Yes
- Laser Distance Meter: Yes; dedicated button
- Measurement Corrections: Yes
- Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function
- Object Temperature Range: -20 C to 120 C (-4 F to 248 F) 0 C to 650 C (32 F to 1202 F) Optional Calibration: 300 C to 1200 C (572 F to 2192 F)
- Reference Temperature: Yes
- Thermal Sensitivity/NETD: <40 mK, 24 at +30 C (+86 F)
- Spotmeter and Area: 3 ea. in live mode
- Automatic hot & cold detection: Automatic maximum/minimum markers within area
Imaging and optical:
- Color alarm (isotherm): Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
- Cover Glass Material: Dragontrail
- Difference Temperature: Yes
- Display Technology: IPS
- Focal Length: 17 mm (0.67 in.), 24 degrees
- Housing material: PCABS with TPE, magnesium
- IR Resolution: 320 x 240 (76,800 pixels)
- Languages: 21
- Laser Alignment: Position is automatically displayed on the infrared image
- Laser Pointer: Class 2, 0.05 to 40 m (0.16 to 131 ft.) +/- 1% of measured distance
Connections and communications:
- Audio: Microphone and speaker for voice annotation of images
- Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi
- METERLiNK - Bluetooth: Communication with headset and external sensors
- Remote Control: Using FLIR Tools (using USB cable) FLIR Tools Mobile (over Wi-Fi)
- Storage Media: Removable SD card
- USB: USB Type-C: data transfer/video/power
- USB - Standard: USB 2.0 High Speed
- Video Out: DisplayPort over USB Type-C
- METERLiNK: Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
Measurement Presets:
- No measurements
- Center spot
- Hot spot
- Cold spot
- User preset 1
- User preset 2
Dimensions:
- Packaging Size: 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)
- Programmable Buttons: 2
- Screening: 0.5 C (0.9 F) accuracy at 37 C (98.6 F) with reference
- Size (L x W x H): Lens horisontal: 140 x 201.3 x 167.3 mm (5.5 x 7.9 x 6.6 in.)
- Spectral Range: 7.5 - 14.0 um
- Tripod Mounting: UNC 1/4-20 inches.
