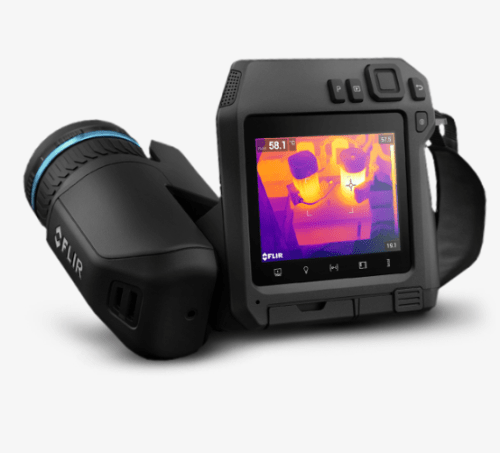

Troubleshoot hotspots, find hidden faults, and confirm repairs quickly with the ergonomic, high-resolution FLIR T540. This 161,472 (464 x 348) pixel thermal imaging camera has a bright 4" LCD and a 180 degrees rotating lens platform, so you can easily and comfortably diagnose electrical or mechanical issues, even in hard-to-reach areas. Advanced on-camera measurement tools such as 1-Touch Level/Span, plus laser-assisted autofocus, ensure you'll record accurate
temperature measurements every time.
Features:
- Outstanding Image Clarity: The T540 uses the power of FLIR Vision Processing to deliver detailed, smooth pictures with very little image noise. FLIR
Vision Processing combines IR resolution, MSX, and UltraMax image enhancement with FLIR's proprietary adaptive filtering algorithms to produce brilliant
thermal images with up to 3.1 million pixels. Plus, the T540 is sensitive enough to detect temperature differences down to <30 mK, for clear, low-noise
results.
- Make critical decisions quickly: Laser-assisted autofocus guarantees you'll get the tack-sharp focus, for accurate temperature readings that lead to
quickbut soliddecisions.
- Flexible and ergonomic: The T540's optical block rotates 180, so you can image targets at any angle - comfortably - all day long.
- Intuitive user interface: The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.
Specifications
Measurement Analysis:
- Accuracy: +/- 2 C (+/- 3.6 F) or +/- 2% of reading
- Area measurement information: Yes
- Laser Distance Meter: Yes; dedicated button
- Measurement Corrections: Yes
- Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function
- Object Temperature Range: -20 C to 120 C (-4 F to 248 F) 0 C to 650 C (32 F to 1202 F) Optional Calibration: 300 C to 1200 C (572 F to 2192 F)
- Reference Temperature: Yes
- Thermal Sensitivity/NETD: <40 mK, 24 at +30 C (+86 F)
- Spotmeter and Area: 3 ea. in live mode
- Automatic hot & cold detection: Automatic maximum/minimum markers within area
Imaging and optical:
- Color alarm (isotherm): Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
- Cover Glass Material: Dragontrail
- Difference Temperature: Yes
- Display Technology: IPS
- Focal Length: 17 mm (0.67 in.), 24 degrees
- Housing material: PCABS with TPE, magnesium
- IR Resolution: 464 x 348 pixels
- Languages: 21
- Laser Alignment: Position is automatically displayed on the infrared image
- Laser Pointer: Class 2, 0.05 x 40 m (0.16 x 131 ft.) +/- 1% of measured distance
Connections and communications:
- Audio: Microphone and speaker for voice annotation of images
- Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi
- METERLiNK - Bluetooth: Communication with headset and external sensors
- Remote Control: Using FLIR Tools (using USB cable) FLIR Tools Mobile (over Wi-Fi)
- Storage Media: Removable SD card
- USB: USB Type-C: data transfer/video/power
- USB - Standard: USB 2.0 High Speed
- Video Out: DisplayPort over USB Type-C
- METERLiNK: Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
Measurement Presets:
- No measurements
- Center spot
- Hot spot
- Cold spot
- User preset 1
- User preset 2
Dimensions:
- Packaging Size: 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)
- Programmable Buttons: 2
- Screening: 0.5 C (0.9 F) accuracy at 37 C (98.6 F) with reference
- Size (L x W x H): Lens horizontal: 140 x 201.3 x 167.3 mm (5.5 x 7.9 x 6.6 in.)
- Spectral Range: 7.5 - 14.0 um
- Tripod Mounting: UNC 1/4-20 inches.
