FLIR Thermal Imaging Camera with Moisture Meter & Hygrometer
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

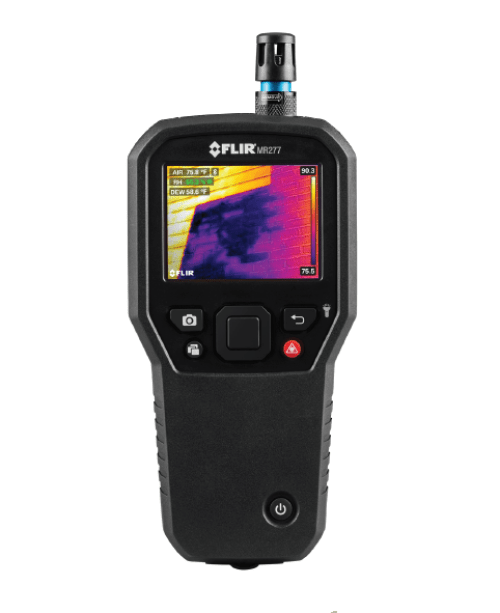

The FLIR MR277 is a MSX IR camera with moisture meter and hygrometer. It is an accurate and easy-to-use, all-in-one instrument to quickly locate and document building problems for repair.
Regular price
$2,375.00 AUD
+ GST
$2,612.50 AUD Inc. GST
$2,612.50 AUD Inc. GST
The FLIR MR277 is an accurate, easy-to-use, all-in-one tool for quickly locating moisture and building envelope issues. This professional moisture meter combines the advantages of Infrared Guided Measurement (IGM) with FLIR Multi-Spectral Dynamic Imaging (MSX) and advanced environmental sensors to help you locate, identify, and document problems. The integrated pinless moisture sensor provides fast, non-invasive readings which you can then confirm with the external pin probe. Features such as the built-in hygrometer and the field-replaceable temperature/relative-humidity sensor expedite troubleshooting, while METERLiNK allows you to connect to mobile devices and upload data to the FLIR Tools app for reporting.
Features:
- Quickly scan for moisture with the integrated non-invasive pinless sensor
- Capture exact measurements with an external pin probe (included) and wide range of optional moisture probes
- Reduce downtime with field-replaceable temperature/humidity sensor
- Calculated parameters based on multi-sensor input: grains per pound or grams per kilogram, vapor pressure, and dew point
- Clearly see areas of concern with a high-performance 160 120 thermal imaging sensor
- Quickly find suspected problems with IGM technology
- Easily identify both the context and the issue with MSX, which embosses visual details on full thermal images
- Target the exact source of problems with the integrated laser pointer
-Create a single file documenting comprehensive thermal and visual imagery with hygrometer readings and laser location
- Download images and data wirelessly or using the included USB cable
- Analyze images and quickly generate reports with free FLIR Tools software
- Easy to use with intuitive interface
Specifications
Thermal Imaging:
- Thermal image resolution: 160 x 120 (19,200 pixels)
- Spectral response: 8 um to 14 um
- Field of view (W x H): 55 x 43
- Sensitivity: less than 70 mK
- Object temperature range: 0 to 100 C (32 to 212 F)
- Image update speed frequency: 9 Hz
Camera:
- Saved image file format: Radiometric jpeg
- Stored image capacity: 15,000 Images
- Digital camera: 2 MP
- Digital camera field of view (FOV): 83 degrees (70.5 degrees HFOV x 56 degrees VFOV)
Image modes and displays:
- Thermal image palettes: Iron, Rainbow, Arctic, White-hot, Black-hot
- MSX: Adds visual details to full resolution thermal image
- Image modes: Thermal, visual, MSX
- Internal memory: 8 GB
- Image gallery: Yes
- Display type: QVGA (320 x 240 pixels) 2.8 in. color TFT graphical display
Moisture measurements:
- Pin moisture range: 7% to 100%
- Pin moisture accuracy: +/- 1.5%, 7 to 30%
- Reference only: 30 to 100%
- Pin moisture groups: 11 material groups
- Pinless moisture range and accuracy: 0 to 100; relative
- Pinless measurement depth: Max of 19 mm (0.75 in)
- Measurement resolution: 0.1
- Response time pinless mode: 100 ms
- Response time pin mode: 750 ms
Environmental measurements:
- Relative humidity range: 0% to 100% RH
- Relative humidity basic accuracy: +/- 2.5%
- Relative humidity detailed accuracy: +/- 4.7% (0% to 10% RH), +/- 2.5% (10% to 90% RH), +/- 4.7% (90% to 100% RH)
- Air temperature range: 0 to 50 C (32 to 122 F)
- Air temperature accuracy: +/- 0.6 C (+/- 1.1 F)
- Dew point: -30 to 50 C (-22 to 122 F)
- Dew point basic accuracy: +/- 1.0 C (+/- 1.8 F)
- Vapor pressure: 0 to 12.0 kPa
- Vapor pressure basic accuracy: +/- 0.05 kPa
- Mixing ratio range: 0 to 80.0 g/kg (0 to 560 GPP)
- Mixing ratio basic accuracy: 0.25 g/kg (+/- 2 GPP)
Includes:
- FLIR MR277
- FLIR MR13 Replaceable Temperature and Relative Humidity Sensor
- FLIR MR02 Standard Moisture
- Pin Probe
- Quick start guide
- International USB charger
- USB cable
- Lanyard
