FLIR VT8-600 Voltage, Continuity, and Current tester

ORDER ME IN
Product code: IC-VT8-600

Backorder Now, once ordered your item will dispatch before the 30th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

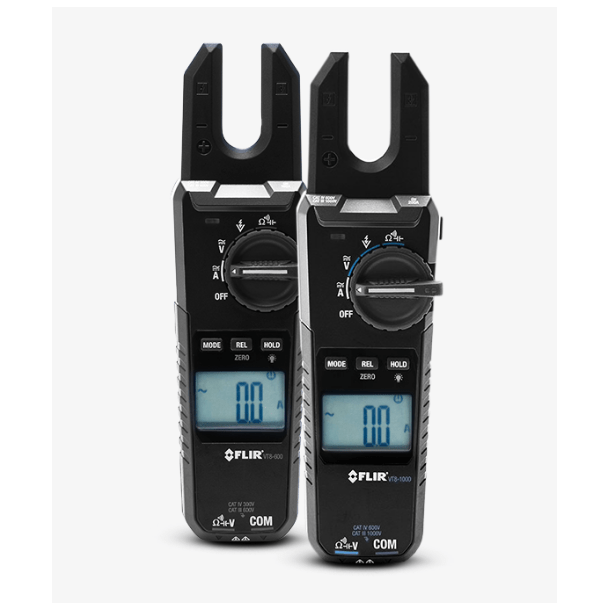

The Flir FLIR VT8-600 voltage, continuity, and current tester has an n optimized, open-jaw design that can fit into tight spaces and reliably measure large-diameter cables. The VT8-600 carries a CAT III-600 V/CAT IV-300 V safety rating and a 100 A/600 V measuring range.

Read more

$199.00 AUD + GST
 $218.90 AUD Inc. GST

The Flir FLIR VT8-600 voltage, continuity, and current tester has an n optimized, open-jaw design that can fit into tight spaces and reliably measure large-diameter cables. The VT8-600 carries a CAT III-600 V/CAT IV-300 V safety rating and a 100 A/600 V measuring range.

Features:
- Rugged and safe: Made with the quality and reliability you have come to expect from FLIR test and measurement tools.
- Rich features: Equipped with the capabilities you need including True RMS, AC/DC voltage and current, continuity, resistance, and capacitance.
- Flexible and easy to use: Take measurements in tight spaces with the optimized jaw design, and measure large-diameter cables with the wide jaw opening.

Specifications

- Jaw Opening: 15.5 mm (0.61 in)
- Worklights: White LED
- Non_Contact Voltage Detector [NCV]: >100 Vrms; <10 mm distance (LED/buzzer alerts)
- Capacitance: 600 uF +/- 4.0%, 6000 uF +/- 10.0%
- Resistance: 60.00 milliohm +/- (1.5%)
- AC/DC Current Range: 100 A
- True RMS: Yes
- AC/DC Volts Range: 600 V
- AC/DC Volts Accuracy: +/- 1.5%, +/- 1.0% (45 to 66Hz)
- Continuity check threshold: 10 to 100 ohm
- AC/DC Current Accuracy: +/- 2.5% (50 to 60 Hz)
- AC/DC Current Resolution: 0.1 A
- AC/DC Voltage Resolution: 0.1 V
- Additional Measurement Functions: DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold
- Auto Power Off: After 15 minutes
- Auto Range: Yes
- Display: 6000-count backlit multi-function LCD
- Polarity: Automatic display of positive and negative polarity
- Display Rate: Approximately 3 times per second
- Over-Range Indication: "OL" or "-OL" displayed
- Warranty: Limited 3-year
- Power Source: 2 x AA alkaline batteries
- Low Battery Indication: Battery symbol is displayed when batteries need changing
- Dimensions (W x H x D): 210 x 53 x 35 mm (8.27 x 2.1 x 0.67 in)
