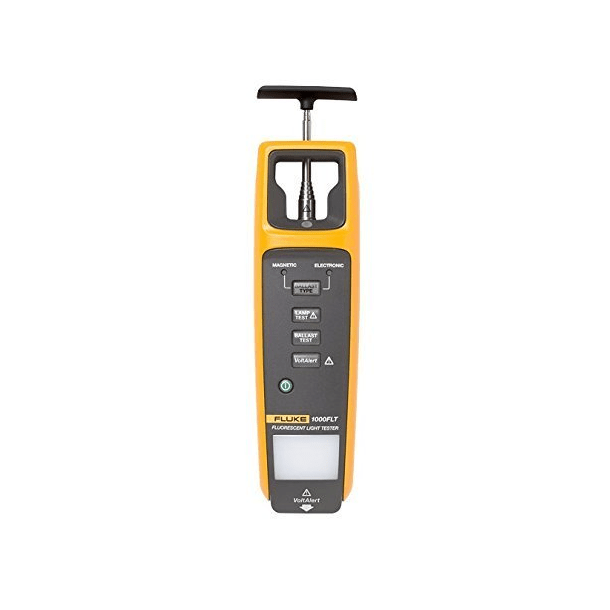

FLUORESCENT LIGHT TESTER - IC-FLUKE-1000FLT
Unfortunately, the Fluke-1000FLT has been discontinued, check out our other Light Meters for more options.
Save time and reduce costs by using the only tester that performs all 5 essential lighting tests in less than 30 seconds. Perform Lamp test, Ballast test, Non-contact voltage, Pin continuity test and Ballast-type test with a push of a buttons from the user friendly front panel.
Features:
Performs five basic tests:
Lamp test - Test bulb without removing from fixture
Ballast test - Easily determine if ballast is working
Non-contact voltage - Quickly check for voltage presence
Pin continuity test - Tests if filaments have continuity
Ballast-type test - Determine if ballast is electronic or magnetic without taking fixture apart – identify energy wasting ballasts
Saves time and reduces costs: Perform all 5 essential lighting tests in under 30 seconds to pinpoint problems and verify operation when done
Survives on-the-job handling: Drop-tested to survive from a six foot (two meter) ladder
Easy to use: Bright indicator light plus audible alert
Built to last, easy to maintain: The Fluke 1000FLT's extendable test rod is all metal and very rugged. But should the need arise, this test rod is easily replaced
Long life: Backed with a three-year warranty
Ballast test: 20 kHz
Ballast type descriminator: ≤3m (10 feet) distance
Pin continuity test: < 1 kΩ
NCV (VoltAlert™): 85 to 400 V AC; 45 a 67 Hz - ≤10 cm (4 in) distance
Operating Temperature: -10 °C to +50 °C (14 °F to +122 °F)
Storage Temperature: -40 °C to +60 °C (-40 °F to +140 °F)
Relative humidity: 85% maximum
Safety rating IEC 61010-1, pollution degree 2
Size: 21.5 cm x 3.0 cm x 6.5 cm (8.5 x 1.2 x 2.6 in)
Battery type: 4 x AA alkaline IEC LR6
Battery life: 40 hours
Auto power off 20 minutes after non-use
Low battery indicator: Power button light blinks when power is low (typically 85% of capacity depleted)
Operating altitude: <2000 m
Electromagnetic environment: EN 61326-1: Portable
Electromagnetic compatibility: CE IEC: CISPR 11: Grupo 2, clase A
Performs five basic tests:
Lamp test - Test bulb without removing from fixture
Ballast test - Easily determine if ballast is working
Non-contact voltage - Quickly check for voltage presence
Pin continuity test - Tests if filaments have continuity
Ballast-type test - Determine if ballast is electronic or magnetic without taking fixture apart – identify energy wasting ballasts
Saves time and reduces costs: Perform all 5 essential lighting tests in under 30 seconds to pinpoint problems and verify operation when done
Survives on-the-job handling: Drop-tested to survive from a six foot (two meter) ladder
Easy to use: Bright indicator light plus audible alert
Built to last, easy to maintain: The Fluke 1000FLT's extendable test rod is all metal and very rugged. But should the need arise, this test rod is easily replaced
Long life: Backed with a three-year warranty
Specifications
Lamp test max output: 3000 V peakBallast test: 20 kHz
Ballast type descriminator: ≤3m (10 feet) distance
Pin continuity test: < 1 kΩ
NCV (VoltAlert™): 85 to 400 V AC; 45 a 67 Hz - ≤10 cm (4 in) distance
Operating Temperature: -10 °C to +50 °C (14 °F to +122 °F)
Storage Temperature: -40 °C to +60 °C (-40 °F to +140 °F)
Relative humidity: 85% maximum
Safety rating IEC 61010-1, pollution degree 2
Size: 21.5 cm x 3.0 cm x 6.5 cm (8.5 x 1.2 x 2.6 in)
Battery type: 4 x AA alkaline IEC LR6
Battery life: 40 hours
Auto power off 20 minutes after non-use
Low battery indicator: Power button light blinks when power is low (typically 85% of capacity depleted)
Operating altitude: <2000 m
Electromagnetic environment: EN 61326-1: Portable
Electromagnetic compatibility: CE IEC: CISPR 11: Grupo 2, clase A
