Force Gauge - Tension & Compression up to 100 kg - FG5100

ORDER ME IN
Product code: FG5100

Backorder Now, once ordered your item will dispatch before the 26th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The FG5100 Force Gauge measures tension and compression up to 100 kg. The user can also select to obtain measurements in pounds or Newton. The backlit LCD display makes readings easy in lowlight environments. With 2 Year Extended Warranty!

Read more

$859.00 AUD + GST
 $944.90 AUD Inc. GST

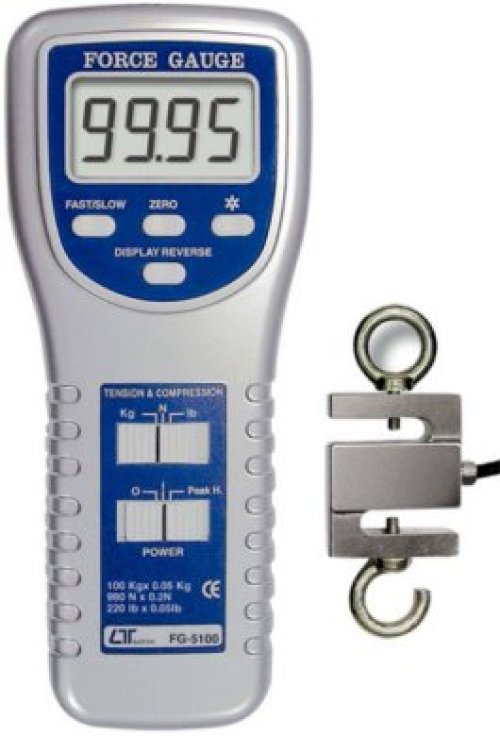

When you need to measure tension and compression at up to 100 kg, the FG5100 Force Gauge is a great option. The gauge features a large, backlit LCD display and a peak hold option to make readings easy. It also has an accuracy rating of 0.5%.

The gauge can easily be used by hand with an external load cell. The unit has low energy consumption to conserve battery power on the included 9V battery, and it has a low battery indicator. The FG5100 Force Gauge comes with a hard carry case for easy transportation. The 100kg load cell comes with a 2m cable and 2 hooks.

What does the FG5100 Measure?
Tension Force/Weight
Compression Force/Weight

The Instrument Choice "1 + 1 Year Extended Warranty" is provided free of charge on this item, giving you a 2 year warranty (1 year manufacturers warranty plus the exclusive 1 bonus year Instrument Choice Warranty). The extended warranty is not valid for the batteries or if the units calibration has had normal deviation. (This extended warranty is valid for purchases of this item made after 28-8-15).

Features
Positive or reverse display direction
Backlit LCD display
Low battery indicator
User selected Fast/Slow response time
Specifications
Unit selection: Kg/LB/Newton
Measurement capacity: 100 Kg/220 LB/980 Newton
Resolution: 0.05 Kg/0.05 LB/0.2 Newton
Accuracy: (0.5% + 2 digits)

Power requirements
Six x 1.5V AA batteries (included)

Dimensions
215mm x 90mm x 45mm

Warranty
12 Months
