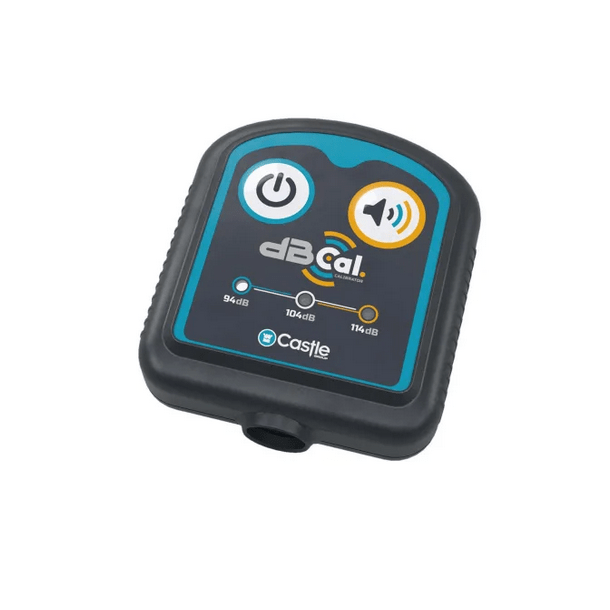

GA611 dBCal 3-level Acoustic Calibrator, Class 1
Backorder Now, once ordered your item will dispatch before the 09th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,109.90 AUD Inc. GST
Features:
- Class 1 calibrator
- 3 output levels, 4dB, 104dB & 114dB, each at 1 kHz. This allows greater options for testing sound meter
- Line-of-sight ergonomics: all controls and displays on same surface as sound meter
- Simple operation: turn on and go!
- Ultra-low distortion and stability
- MEMS microphone feedback for atmospheric pressure compensation.
- Compliant with 2018 standard
- User-upgradable software for future-proofing
Calibration Reports:
For wireless sound level meters, such as the Castle dBAir, the calibrator (GA611W) and sound meter can automatically pair each time a calibration is performed, generating a calibration report containing the serial number and calibration status of the calibrator as well as that of the sound meter. This report will be stored within the sound level meter and later uploaded to the Castle Cloud software, in order to create a traceable and secure calibration history database.
Specifications
- Tolerance: +/- 0.25dB
- Harmonic Distortion: less than 1.6%
- Temperature range: -10 to 50 C
- Relative Humidity: 25% to 90%
- Atmospheric Pressure Range: 65 kPa to 108 kPa
- Nominal Conditions: 101.3kPa (760mm Hg), 23 C and 50%RH
- Batteries: 2 x 1.5V AA Alkaline
- Battery Life: approx. 70 hours continuous
- Auto Power-off: 1 minute (unless "wireless" calibration started)
- Cavity diameter: 1/2 inch microphone standard
- Output Levels (rel. to 20?Pa): 94dB, 104dB & 114dB 94dB, 104dB & 114dB
- Standards: IEC 60942:2017 , BS EN IEC 60942:2018, ANSI S1.40 2006
