Digital Refractometer - Sodium Chloride Measurement
$524.62 AUD Inc. GST
- Ideal for the analysis of: Salad Dressings, Cheeses, Condiments, Pickles, Canned Foods, Jarred Foods, Milk, Juices, Energy Drinks, Soups, Brines and Whey
- The dual-level LCD displays measurement and temperature readings simultaneously
- Automatic Temperature Compensation for accurate measurements
- Easy measurement; place a few drops of the sample in the well and press the READ key
- BEPS (Battery Error Prevention System) alerts the user in the event that low battery power could adversely affect readings.
- IP65 water protection; built to perform under harsh laboratory and field conditions.
- Quick, accurate results, readings are displayed in approximately 1.5 seconds.
- Single point calibration with distilled or deionized water
- Small sample size, can be as small as 2 metric drops.
- Automatic shut-off after three minutes of non-use
- Stainless steel sample well, easy to clean and corrosion resistant
- ABS thermoplastic casing

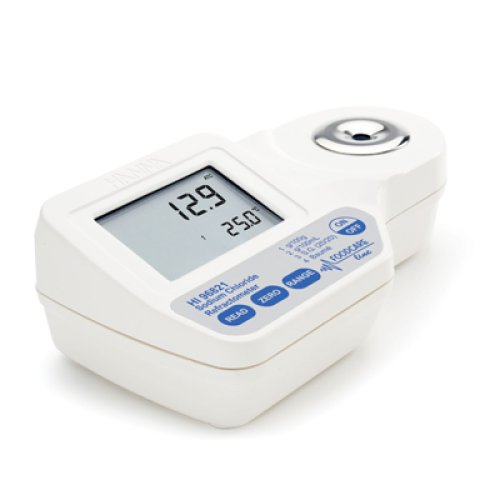

HANNA offers the HI 96821 digital sodium chloride refractometer to meet the requirements of the food industry. This optical instrument employs the measurement of the refractive index to determine sodium chloride concentration in aqueous solutions used in food preparation. It is not intended for sea water salinity measurements.
The measurement of refractive index is simple and quick and provides the user an accepted method for NaCl analysis. Samples are measured after a simple user calibration with deionized or distilled water. Within seconds the instrument measures the refractive index of the solution. The digital refractometer eliminates the uncertainty associated with mechanical refractometers and is portable for measurements where you need them.
The instrument utilizes internationally recognized references for unit conversion and temperature compensation. It can display the measurement of NaCl concentration 4 different ways: g/100 g, g/100 mL, specific gravity, and Baume.
Temperature (in C or F) is displayed simultaneously with the measurement (on 3 of the ranges) on the large dual level display along with icons for Low Power and other helpful message codes.
Range
g/100 g 0 to 28
g/100 mL 0 to 34
Specific Gravity 1.000 to 1.216
Baume 0 to 26
Temperature 0 to 80 C (32 to 176 F)
Resolution
g/100 g 0.1
g/100 mL 0.1
Specific Gravity 0.001
Baume 0.1
Temperature 0.1 C (0.1 F)
Accuracy (20 C)
g/100 g 0.2
g/100 mL 0.2
Specific Gravity 0.002
Baume 0.2
Temperature 0.3 C (0.5 F)
Temperature Compensation: automatic between 10 and 40 C (50 to 104 F)
Measurement Time: approximately 1.5 seconds
Minimum Sample Volume: 100 uL (to cover prism totally)
Light Source: yellow LED
Sample Cell: stainless steel ring and flint glass prism
Auto-off: after three minutes of non-use
Enclosure Rating: IP 65
Battery Type / Battery Life: 9V / approximately 5000 readings
Dimensions / Weight: 192 x 104 x 69 mm (7.6 x 4.1 x 2.7") / 420 g (14.8 oz.)
