HOBO Wind Monitoring Station with Davis Wind Speed/Direction Sensor (1 min logging/10 min uploads) - IC-RX2102-S-WCF-M003
Backorder Now, once ordered your item will dispatch before the 18th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The new HOBO Wind Monitoring Station is an easy to deploy, low-cost cellular solution, allowing you to reliably monitor and alarm wind conditions. This configuration features RX2102 with 1 minute logging/10 minute uploads with Davis windspeed/direction smart sensor and includes SIM plan for 12 months.
Regular price
$3,417.00 AUD
+ GST
$3,758.70 AUD Inc. GST
$3,758.70 AUD Inc. GST

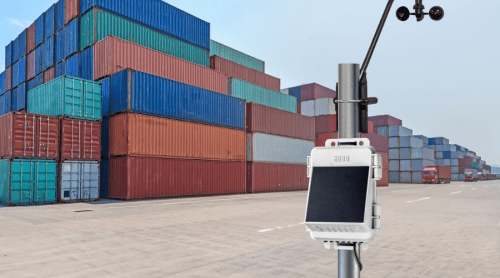

The HOBO Wind Monitoring Station is an easy-to-deploy, low-cost cellular wind monitoring solution. The web-enabled HOBO MicroRX station, together with the Davis Wind Speed/Direction Smart Sensor offers long-term, reliable monitoring of wind conditions. Configurable station-side alarms provide immediate notification of critical conditions, allowing you to easily maintain OH&S compliance, and Onset's cloud-based HOBOlink platform makes it easy to view, access, and share your data.
Features:
- Integrated solar panel for easy long term deployment
- Remote access to data and current conditions with a customizable dashboard for analysis
- Alarm notifications via text/email when conditions reach user-set thresholds
- Inputs for five plug-and-play smart sensors
- Real-time monitoring with up to 10-minute connection rates via 4G cellular
Specifications

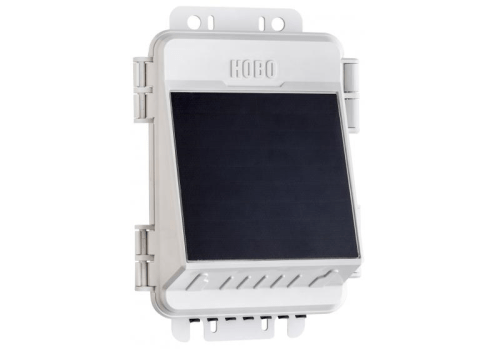

Hobo MicroRX Station:
- Operating range: -20 to 60 C
- Smart Sensor Connectors: 5
- Smart Sensor Network Cable Length: 100 m maximum
- Smart Sensor Data Channels: Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
- Logging Rate: 1 minute to 18 hours
- Time Accuracy: +/- 8 seconds per month in 0 to 40 C (32 F to 104 F) range; +/- 30 seconds per month in -40 to 60 C (-40 to 140 F) range
- Memory: 16 MB, 1 million measurements, continuous logging
- Alarm Notification Latency: Logging interval plus 2 to 4 minutes, typical
- Enclosure Access: Hinged door secured by two latches with eyelets for use with user-supplied padlocks
- LCD: LCD is visible from 0 to 50 C (32 to 122 F); the LCD may react slowly or go blank in temperatures outside this range
- Battery Life: 3 months
- Battery type/Power source: 1.7 watt solar panel and NiMH rechargeable battery pack
- Dimensions: 19.95 x 13.68 x 7.49 cm
- Weight: 678 g
- Mounting: Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
- Environmental Rating: Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)

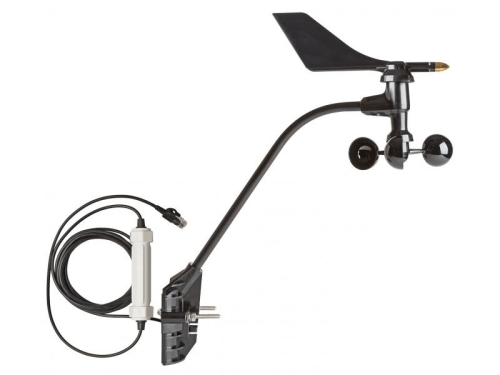

Wind sensor (S-WCF-M003):
Davis Wind Speed/Direction Smart Sensors are compatible with all HOBO weather station loggers, HOBOware, and HOBOlink. They offer the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget. The sensors feature a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.
Materials:
- Outer enclosure: Polycarbonate/PBT blend with brass inserts
- Interior: Polycarbonate/PBT
- Gasket: Silicone foam
- Cable channel: Santoprene TPE
- U-Bolts (not included): Steel with zinc dichromate finish
Solar power:
- Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
- Typical battery life: Typical 3 to 5 years when operated in the temperature range -20 to 40 C (-4 to 104 F); operation outside this range will reduce the battery service life.
- Maximum connection rates with built-in solar panel, in full sun: 10 minute connections year round for latitudes less than +/- 40 degrees; 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
