HOBO Wind Monitoring Station with Ultrasonic Wind Speed/Direction Sensor (1 min logging/10 min uploads)
Backorder Now, once ordered your item will dispatch before the 18th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The new HOBO Wind Monitoring Station is an easy to deploy, low-cost cellular solution, allowing you to reliably monitor and alarm wind conditions. This configuration features RX2102 with 10 minutes logging/1 minute uploads with an ultrasonic windspeed/direction smart sensor and includes SIM plan for 12 months.
Regular price
$5,502.00 AUD
+ GST
$6,052.20 AUD Inc. GST
$6,052.20 AUD Inc. GST

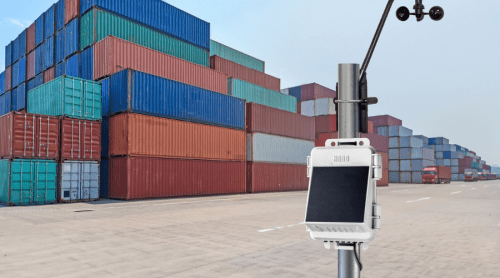

The HOBO Wind Monitoring Station is an easy-to-deploy, low-cost cellular wind monitoring solution. The web-enabled HOBO MicroRX station, together with the Davis Wind Speed/Direction Smart Sensor offers long-term, reliable monitoring of wind conditions. Configurable station-side alarms provide immediate notification of critical conditions, allowing you to easily maintain OH&S compliance, and Onset's cloud-based HOBOlink platform makes it easy to view, access, and share your data.
Features:
- Integrated solar panel for easy long term deployment
- Remote access to data and current conditions with a customizable dashboard for analysis
- Alarm notifications via text/email when conditions reach user-set thresholds
- Inputs for five plug-and-play smart sensors
- Real-time monitoring with up to 10-minute connection rates via 4G cellular
Specifications

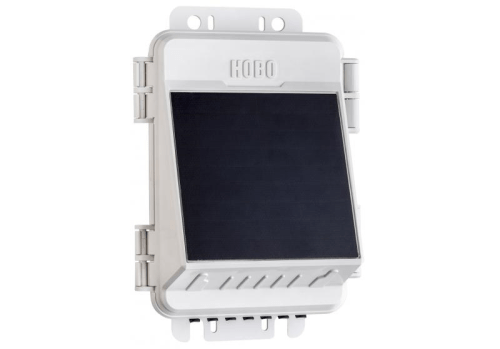

Hobo MicroRX Station:
- Operating range: -20 to 60 C
- Smart Sensor Connectors: 5
- Smart Sensor Network Cable Length: 100 m maximum
- Smart Sensor Data Channels: Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
- Logging Rate: 1 minute to 18 hours
- Time Accuracy: +/- 8 seconds per month in 0 to 40 C (32 F to 104 F) range; +/- 30 seconds per month in -40 to 60 C (-40 to 140 F) range
- Memory: 16 MB, 1 million measurements, continuous logging
- Alarm Notification Latency: Logging interval plus 2 to 4 minutes, typical
- Enclosure Access: Hinged door secured by two latches with eyelets for use with user-supplied padlocks
- LCD: LCD is visible from 0 to 50 C (32 to 122 F); the LCD may react slowly or go blank in temperatures outside this range
- Battery Life: 3 months
- Battery type/Power source: 1.7 watt solar panel and NiMH rechargeable battery pack
- Dimensions: 19.95 x 13.68 x 7.49 cm
- Weight: 678 g
- Mounting: Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
- Environmental Rating: Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)

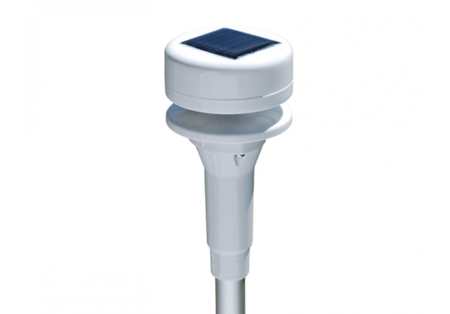

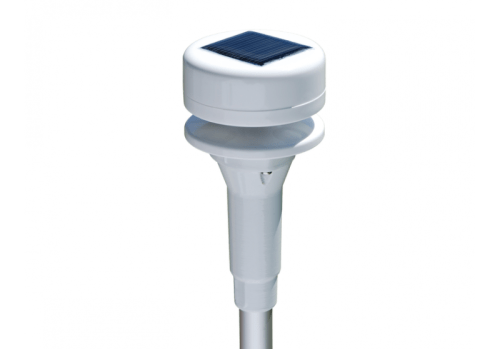

Wind Sensor (S-WCG)
Wind Speed/Gust:
- Measurement Range: 0 to 41.16 m/s (0 to 92.07 mph)
- Accuracy: +/- 0.8 m/s (1.79 mph) or +/- 4% of reading, whichever is greater
- Resolution: 0.4 m/s (0.89 mph)
- Measurement Definition: Wind speed readings are taken every three seconds for the duration of the logging interval. Wind speed: Average speed for the entire logging interval. Gust speed: The highest three-second wind recorded during the logging interval
Wind Direction:
- Measurement Range: 0 to 359 degrees
- Accuracy: 0.2 to 3 m/s (0.446.7 mph): +/- 4 degrees greater than 3 m/s (6.7 mph): +/- 2 degrees
- Resolution: 1 degrees (0 to 359 degrees)
- Measurement Definition : Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation)
General:
- Operating Temperature Range Without Icing: -15 to 55 C
- Environmental Rating: Weatherproof
- Housing: Polyacetal
- Dimensions Sensor length: 380 mm (14.96 inches)/Sensor head diameter: 60 mm (2.36 inches)/
Sensor rod diameter: 16 mm (0.63 inches)
- Weight: 200 g (7 oz)
- Power Supply: Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery
- Bits per Sample: 8 for each channel, 24 total
- Number of Data Channels: 3
- Measurement Averaging Option: Automatic averaging (see Measurement Operation)
Cable Length Available 3 m (16.4 ft)
Length of Smart Sensor Network Cable* 0.5 m (1.6 ft)
