HOBOnet Manager

ORDER ME IN
Product code: IC-RXMOD-RXW-922

Backorder Now, once ordered your item will dispatch before the 21st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

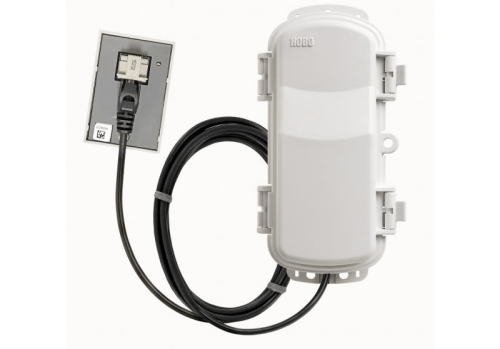

The HOBOnet Wireless Manager module is installed in an RX3000 station. Data is transmitted wirelessly from sensors across the network to the RX3000 station and then uploaded to HOBOlink, Onset's innovative cloud-based software platform.

Read more

$427.00 AUD + GST
 $469.70 AUD Inc. GST

The HOBOnet Wireless Manager module is installed in an RX3000 station. Data is transmitted wirelessly from sensors across the network to the RX3000 station and then uploaded to HOBOlink, Onset's innovative cloud-based software platform.

Highlighted Features:
- 922 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors per RX3000
- Plugs into RX3000 Flex Port
In what environment does this communication operate?
- This communication operates in an outdoor environment.
Important Info:
A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager (RXMOD-RXW-xxx), and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RX-RPTR-xxx) can be added to extend the range.

Specifications

- Operating Temperature Range: -25 to 60 C (-13 to 140 F)
- Radio Power: 12.6 mW (+11 dBm) non-adjustable
- Transmission Range: Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high/Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
- Wireless Data Standard: IEEE 802.15.4
- Radio Operating Frequencies: RXMOD-RXW-922: 916 to 924 MHz
- Modulation Employed: OQPSK (Offset Quadrature Phase Shift Keying)
- Data Rate: Up to 250 kbps, non-adjustable
- Duty Cycle: <1%
- Maximum Number of Motes: 50 motes per one RX Wireless Sensor Network
- Power Source: Powered by the RX3000 station
- Dimensions (Mote): 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
- Dimensions (Cable length): 2 m (6.56 ft)
- Weight: Mote: 159 g (5.62 oz)
- Materials: Mote: PCPBT, silicone rubber seal
- Environmental Rating: Mote: IP67, NEMA 6
