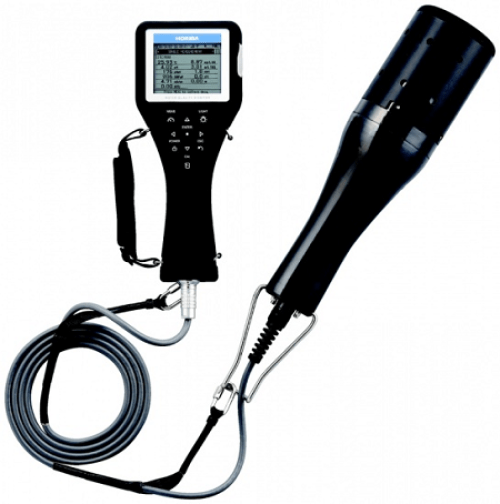

Horiba U-53 MultiParameter Water Quality Meter (30m cable)
Backorder Now, once ordered your item will dispatch before the 04th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Measure and display up to 11 parameters simultaneously with newly designed control unit and sensor technology. The operator can select which parameters are to be displayed on the screen at any time. Intuitive software assures ease of use and operation efficiency. Experience the durability and performance of a water quality meter that exceeds your expectations in the field testing of groundwater and surface water applications.
Regular price
$9,469.10 AUD
+ GST
$10,416.01 AUD Inc. GST
$10,416.01 AUD Inc. GST
Features:
- Easy to read LCD display
- One-hand operation
- On-screen icon displays battery power and GPS, USB and probe unit connectivity
- Quick-connect connector (cable to control unit)
- Shock resistant cover
- Backlight display
- Ultra-sensitive turbidity sensor
- Turbidity sensor conforms to both US EPA 180.1
- Minimum dissolved oxygen sensor maintenance with screw-on type membrane cap
- Chemical resistant materials of construction
- Optional ToupH pH electrode* that is difficult to break (* Prevents damage during maintenance)
- Field replaceable sensors
- Have data logging capability (10,000 sets of data including date/time and site name) with USB connectivity to PC
- Latest calibration data/date can be viewed on the display at any time.
- Probe attached on 30m cable
- Complete manual calibration certificate available. Select under options
Specifications
Measurement functions:
- pH, Dissolved Oxygen, Conductivity, Salinity, TDS, Seawater specific gravity, Temperature, ORP (Oxidation Reduction Potential), Turbidity, and depth
Sensor probe:
- Max.items displaying simultaneously: 11
- Measurement temperature: -10 to 55 C
- Max. sensor diameter: Approx. 96mm
- Probe length: Approx. 340mm
- Cable length: Standard: 30m
- Mass: Approx. 1800g (3.97 lbs)
- Automatic calibration: Yes
- Measurement depth: Max. 30 m
- Material contact with liquid: PPS, glass, SUS316L, SUS304, FKM, PEEK, Q,Titanium, FEP membrane, POM
- Water resistance: JIS protection level 8
- Turbidity wiper
Monitor:
- LCD: 320 X 240 liquid crystal display with backlight (black and white)
- Data memory: 10,000
- Water resistance: JIS protection level 7 (when sensor cable is fitted)
- Communication: USB
- Battery life: Approx. 500 measurements
- Outer dimensions: 115(W) X 66(D) X 283(H) mm
pH:
- Measurement principle: Glass electrode method
- Range: pH 0 to 14
- Resolution: 0.01pH
- Repeatability: +/- 0.05pH
- Accuracy: +/- 0.1pH
- Two-point calibration
- Automatic temperature compensation
Oxidation Reduction Potential (ORP):
- Measurement principle: Platinum electrode method
- Range: -2000 mV to +2000 mV
- Resolution: 1 mV
- Repeatability: +/- 5 mV
- Accuracy: +/- 15 mV
Dissolved Oxygen:
- Salinity conversion (0 to 70 PPT / automatic)
- Automatic temperature compensation
- Measurement principle: Polarographic method
- Range: 0 to 50.0 mg/L
- Resolution: 0.01 mg/L
- Repeatability: +/- 0.1 mg/L
- Accuracy: 0 to 20 mg/L: +/- 0.2 mg/L; 20 to 50 mg/+/- 0.5 mg/L
Conductivity:
- Measurement principle: 4 AC electrode method
- Range: 0 to 10 S/m (0 to 100 mS/cm)
- Resolution: 0.000 to 0.999 mS/cm:0.001, 1.00 to 9.99 mS/cm: 0.01, 10.0 to 99.9 mS/cm: 0.1, 0.0 to 99.9 mS/m: 0.1, 0.100 to 0.999 S/m: 0.001, .00 to 9.99 S/m: 0.01
- Repeatability: +/- 0.05% F.S.
- Accuracy: *+/- 1% F.S.(Median of two-point calibration)
- Auto range
- Automatic temperature conversion (25 C)
Salinity:
- Measurement principle: Conductivity conversion
- Range: 0 to 70 PPT (permillage)
- Resolution: 0.1 PPt
- Repeatability: +/- 1 PPT
- Accuracy: +/- 3 PPT
Total Dissolved Solid (TDS):
- Measurement principle: Conductivity conversion
- Range: 0 to 100 g/L
- Resolution: 0.1% F.S.
- Repeatability: +/- 2 g/L
- Accuracy: +/- 5 g/L
Seawater specific gravity:
- Measurement principle: Conductivity conversion
- Range: 0 to 50 delta T
- Resolution: 0.1 delta T
- Repeatability: +/- 2 delta T
- Accuracy: +/- 5 delta T
Temperature:
- Measurement principle: Thermistor method
- Range: -10 to 55 C
- Resolution: 0.01 C
- Repeatability: *+/- 0.10 C (at calibration point)
- Accuracy: JIS class B platinum thermometer sensor (+/- 0.3+0.005 |t|)
Turbidity (TURB):
- Measurement principle: Tungsten lamp source and 90 degrees scattering method
- Range: 0 to 1000 NTU
- Resolution: 0 to 9.99 NTU: 0.01,10 to 99.9 NTU: 0.1, 100 to 1000 NTU: 1,
- Repeatability: +/- 3% (reading) or +/- 0.1 NTU whichever is greater
- Accuracy: 0 to 10 NTU: +/- 0.5 10 to 1000 NTU: 3% (reading) or +/- 1 NTU whichever is greater
Water depth:
- Measurement principle: Pressure method
- Range: 0 to 30 m
- Resolution: 0.05 m
- Repeatability: +/- 1% F.S.
- Accuracy: +/- 0.3 m
