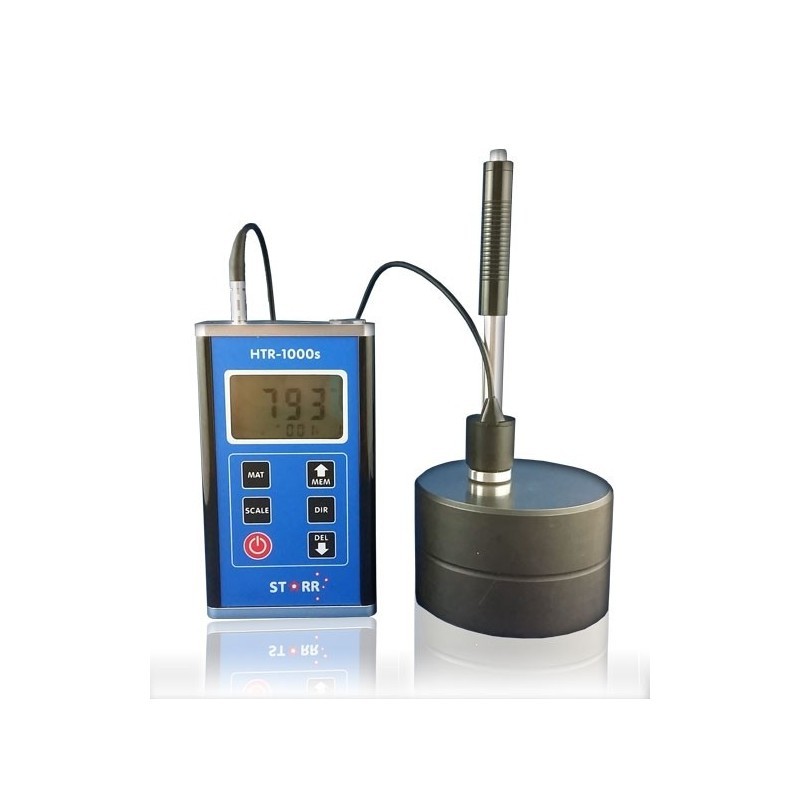

HTR 1000s Portable Hardness Tester with Text Block - IC-HTR-1000s-TestBlock
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The HTR-1000s is a portable hardness tester ideal for general use. It features an external probe impact device, to make this unit suitable for use where access is limited, such as internal bores, recessed areas etc.
- Includes test block used for calibration.
Regular price
$1,229.50 AUD
+ GST
$1,352.45 AUD Inc. GST
$1,352.45 AUD Inc. GST
The Portable hardness tester HTR-1000s has an separate pen-type indenter and is suited for a wide range of testing applications.
It is ideal for use on-site or on the shop floor, the HTR-1000s is used for the classification of metals and inspection of machinery and certain parts for wear and tear. The external pen style indenter is useful in situations for testing such as cogs of gears or cavities of die moulds, o-ring grooves and other recesses.
The HTR-1000s can also be used in any direction and can be user set as required. Results are display instantly on the screen and are digitally converted to other common hardness scales such as Brinell, Vickers, Rockwell and more. Also featured is an internal memory and also the ability to transmit data wirelessly with the optional Bluetooth dongle and software.
Features:
- Auto Conversion to common hardness scales (HRC, HRC, HB, HV etc).
- Features 9 preset, common materials including Steel, Cast Steel, Tool Steel, Forged Steel, G.C. Iron, Nodular Cast Iron, Cast Aluminium, Brass, Bronze and Copper for easy measurement and classification.
- Large Memory.
- Optional Bluetooth wireless data output.
- Multi angle testing with orientation sensor.
- Separate D-type Probe Indenter.
- Features 9 preset, common materials including Steel, Cast Steel, Tool Steel, Forged Steel, G.C. Iron, Nodular Cast Iron, Cast Aluminium, Brass, Bronze and Copper for easy measurement and classification.
- Large Memory.
- Optional Bluetooth wireless data output.
- Multi angle testing with orientation sensor.
- Separate D-type Probe Indenter.
Specifications
- Impact Device: D-type, separated
- Hardness Scales: HLD, HB, HRC, HRB, HV, HS
- Accuracy: +/- 0.8 %
- Max. Hardness: 960 HLD
- Min. Hardness: 170 HLD
- Measuring Direction: All
- Memory: 50 sets (hardness, material, scale, direction)
- Power: 2 x 1.5v AAA Battery
- Dimensions: 130mm x 76mm x 31mm
- Hardness Scales: HLD, HB, HRC, HRB, HV, HS
- Accuracy: +/- 0.8 %
- Max. Hardness: 960 HLD
- Min. Hardness: 170 HLD
- Measuring Direction: All
- Memory: 50 sets (hardness, material, scale, direction)
- Power: 2 x 1.5v AAA Battery
- Dimensions: 130mm x 76mm x 31mm
