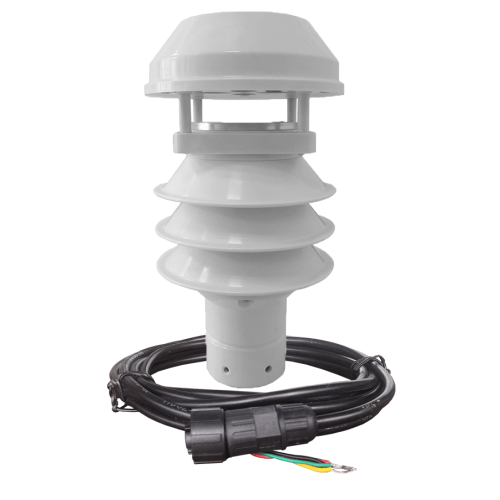

HY-SA6E-3 Ultrasonic Multifunction Weather Station

ORDER ME IN
Product code: IC-HY-SA6E-3

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The HY-SA6E-3 is an ultrasonic weather station integrated with multiple high accuracy sensors that measure wind speed, wind direction, temperature, humidity, air pressure, precipitation and solar radiation, built to withstand harsh environments.

-Maintenance free: Built with corrosion-free materials and does not require onsite calibration.

-With built-in heating to ensure continuous performance even in cold weather.

Read more

$2,268.00 AUD + GST
 $2,494.80 AUD Inc. GST
The HY-SA6E is an ultrasonic weather station integrated with multiple high accuracy sensors that measure wind speed, wind direction, temperature, humidity, and air pressure built to withstand harsh environments.
It is made with a robust, high strength construction design to withstand installation and use with no fear of the damage commonly experienced with more fragile cups/vane weather station. Ideal for applications that demand economic weather sensing. Without the need for expensive on-site calibration or maintenance and with a corrosion free exterior, HY-SA6E is maintenance free, quick and easy to install.
The HY-SA6E can simultaneously measure all the listed parameters, 24 hours a day, with no interruption.
Features:
- Robust design, easy to install, 24 hours continuous monitoring
- Without moving parts, whole system is free of maintenance
- MODBUS communication protocol, standard RS485/RS232 output
- With internal heating device ensures normal operation in cold weather
- Radar precipitation integrator can accurately measure amount of precipitation and reflect beginning and ending of raining

Specifications

Windspeed:
- Range: 0 - 70m/s
- Accuracy: +/- 3%
- Resolution: 0.1 m/s
Wind direction:
- Range: 0 to 359 degrees
- Accuracy: +/- 3 degrees
- Resolution: 1
Air Temperature:
- Range: -40 to +80 C
- Accuracy: +/- 0.2
- Resolution: 0.1 C
Humidity:
- Range: 0-100%
- Accuracy: +/- 0.2
- Resolution: 0.1
Air pressure:
- Range: 150 - 1020hPa
- Accuracy: +/- 1 hPa
- Resolution: 0.1hPa
Precipitation:
- Range: 0 to 100mm/hr
- Identifiable Type: Rain/Snow
- Resolution: 0.01mm
Solar Radiation:
- Range: 0 to 1750 W/m2
- Accuracy: +/- 5%
- Resolution: 1 W/m2
General:
- Signal Output: RS232/RS485
- Power Supply: VDC:12V-24V
- Data Output: 1 per second(adjustable)
- Power Consumption: less than 3W (with heating: 6W)
- Material of Body: ABS
- Communication Protocol: Modbus
